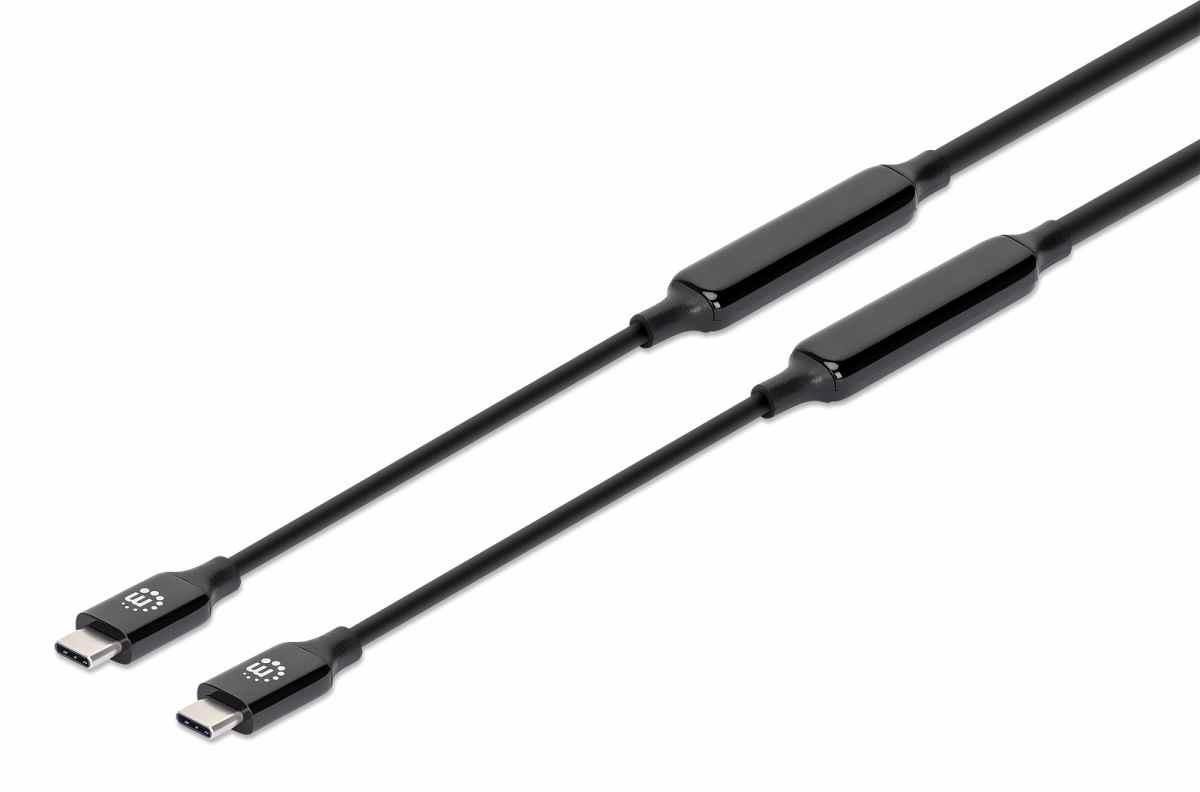

MANHATTAN Kabel USB-C Male to Male, USB 3.2 Gen 2 Type-C Active Device Cable, 3m, pozlacené koncovky, černá

Výrobce: Manhattan

Kód: KKR9788

Typové označení výrobce : 355964

GTIN (EAN): 766623355964

Záruka: doživotní

1 438,00 Kč s DPH

1 188,00 Kč bez DPH

Množ.:

i h

USB 3.2 Gen 2 Type-C Active Device Cable

USB-C Male to USB-C Male, 3 m (10 ft.), SuperSpeed+ USB, 10 Gbps, 60 W / 3 A, Gold-plated Contacts, Ideal for Docking Stations, Black

USB-C male to USB-C male for connecting a USB-C device to a USB-C port
USB 3.2 Gen 2 compliant with SuperSpeed+ transfer rates up to 10 Gbps; built-in retimer maintains full 10G up to 3 m (10 ft.)
Overcomes the USB-C distance limitation for power, data and video at a range up to five times higher without signal loss

TECHNICAL SPECIFICATIONS

Standards and Certifications	USB 3.2 Gen 2 CE RoHS FCC
General	Two USB-C 24-pin males Double shielding: aluminum foil and Mylar braid Gold-plated contacts Molded PVC boot with strain relief Thermal plastic casing 30/22 AWG
Outer diameter (OD)	6.2 mm (0.24 in.)
Length	3 m (10 ft.)
Weight	120 g (4.23 oz.)
Package Contents	USB-C to USB-C Cable, USB 3.2 Gen 2 (10 Gbps)
Electrical
Withstanding voltage	300 VDC 10 ms
Insulation resistance	10 MOhm min.
Contact resistance	2 Ohm max.
Supported power throughput	60 W / 3 A / 20 V
Operating Environment
Operation temperature	0 - 45°C (32 - 113°F)
Operating humidity (non-condensing)	10 - 85%
Storage temperature	-10 - 70°C (14 - 158°F)
Storage humidity (non-condensing)	5 - 90%

Specifikace produktů

Specifikace kabelu / redukce	USB-C
