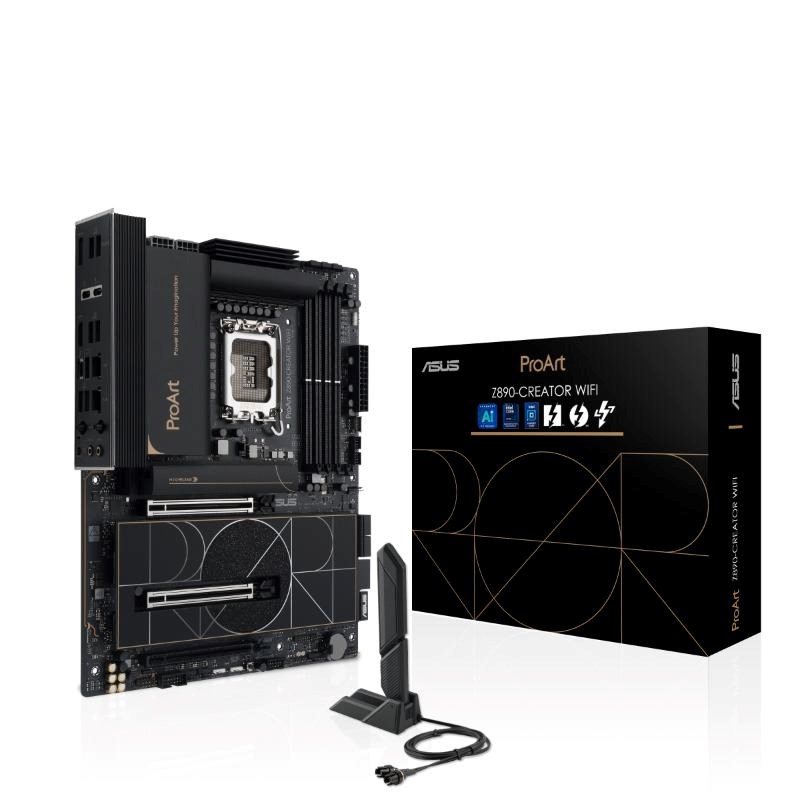

ASUS MB Sc LGA1851 PROART Z890-CREATOR WIFI, Intel Z890, 4xDDR5, 1xDP, 1xHDMI, 3xThunderbolt, WI-FI, ATX

Support Intel Core™ Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel Z890 Chipset

4 x DIMM slots, max. 192GB, DDR5
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Support DIMM Fit
Support DIMM Flex
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x HDMI™ port**
2 x Intel Thunderbolt™ 5 ports (USB Type-C) support DisplayPort and Thunderbolt™ video outputs***
1 x Intel Thunderbolt™ 4 ports (USB Type-C) support DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMI 2.1
*** Supports up to 2 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors with DP in.
*** Supports up to 1 x 8K@60HZ (DSC mode) + 1 x 4K@60HZ monitors without DP in.
*** For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt™ cables.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
 For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
 For Windows 10, only Wi-Fi 6 is supported.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*Audio Features
- Gold-plated audio jacks
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

2 x Thunderbolt™ 5 USB Type-C ports
1 x Thunderbolt™ 4 USB Type-C port
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI™ port
1 x Wi-Fi module1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack™ button

IT Management software supported
- ASUS Control Center Express(ACCE)

256 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Windows 11  (22H2 & later)

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
