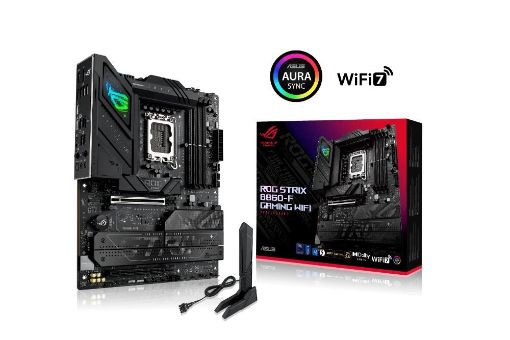

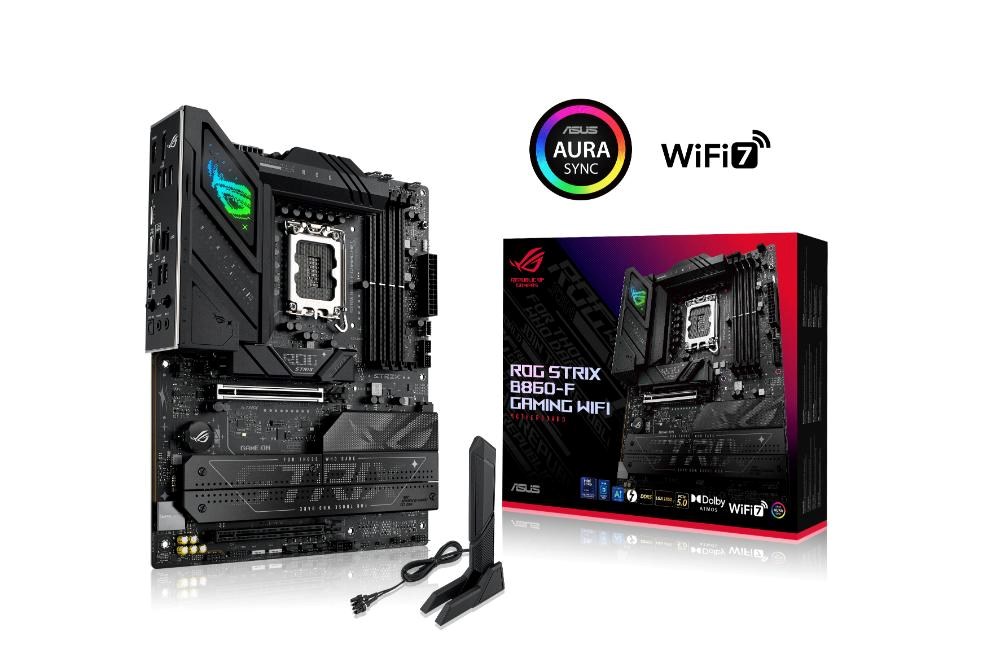

ASUS MB Sc LGA1851 ROG STRIX B860-F GAMING WIFI, Intel B860, 4xDDR5, 1xThunderbolt, 1xDP, 1xHDMI, WiFi, ATX

Intel Socket LGA1851 for Intel Core™ Ultra Processors(Series 2)
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel B860 Chipset

4 x DIMM slots, max. 256GB, DDR5
Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x DisplayPort**
1 x HDMI™ port***
1 x Intel Thunderbolt™ 4 port (USB Type-C) supports DisplayPort and Thunderbolt™ video outputs****
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4.
*** Supports 8K@60Hz with DSC as specified in HDMI 2.1.
**** In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
***** VGA resolution support depends on processors' or graphic cards' resolution.
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4***
*Wi-Fi features may vary depending on the operating system
 For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
 For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel

1 x Thunderbolt™ 4 (1 x USB Type-C)
1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
6 x USB 5Gbps ports (6 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
2 x audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

256 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Windows 11 (22H2 & later)

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
