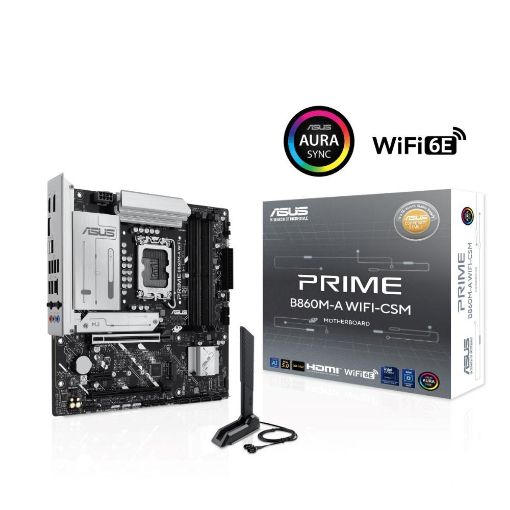

ASUS MB Sc LGA1851 PRIME B860M-A WIFI, Intel B860, 4xDDR5, 2xDP, 1xHDMI, WiFi, mATX

Support Intel Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel B860 Chipset

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

2 x DisplayPort**
1 x HDMI™ port***
 * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
2 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
