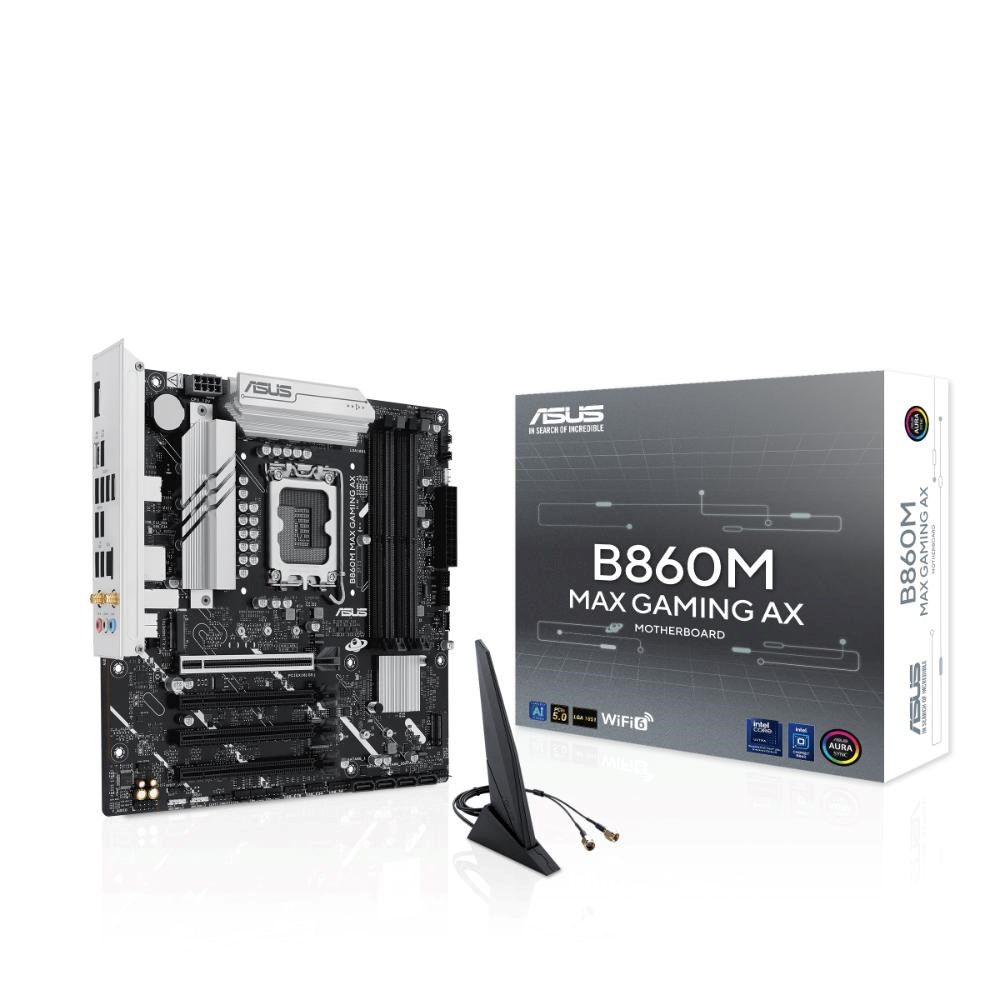

ASUS MB Sc LGA1851 B860M MAX GAMING AX, Intel B860, 4xDDR5, 1xDP, WiFi, mATX

Výrobce: Asus

Buďte první, kdo napíše recenzi tohoto produktu

Kód: KMB15202

Typové označení výrobce : 90MB1JZ0-M0EAY0

GTIN (EAN): 4711387831694

Záruka: 36 Měsíců

Sklad	Dostupnost
E-shop	26 ks
Externí	0 ks
Prodejna P-4	0 ks

3 879,00 Kč s DPH

3 206,00 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

ASUS B860M MAX GAMING AX

ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the B860M MAX GAMING AX motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

CPU

Support Intel Core™ Ultra Processors (Series 2) , LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
*Refer to https://www.asus.com/support/download-center/ for CPU support list.
**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B860 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
*Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***** VGA resolution support depends on processors' or graphic cards' resolution.
******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel Core™ Ultra Processors(series 2)

1 x PCIe 5.0 x16 slot

Intel B860 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (support x1 mode)
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core™ Ultra Processors (Series 2) *

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

IntelB860 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 modes)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 10 ports)

1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A )
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 header supports 6 additional USB 2.0 ports
*USB Type-C power delivery output: max. 5V/3A
** USB 5G_E1 port, USB 5G_E2 port, USB 5G_E3 port and USB 5G_E4 port share the bandwidth.
**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
**** USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C)
1 x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A )
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related

3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 10Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 header supports 6 additionalUSB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O

ASUS Q-Design

- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- ProCool
- Pre-mounted I/O shield

Aura Sync

- Addressable Gen2 headers

Software Features

ASUS Exclusive Software

Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi moving antenna
2 x Screw packages for M.2 SSD

Documentation

1 x Quick start guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor

micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Specifikace produktů

3.5mm Jack	Ano
Bezdrátové připojení	WiFi + Bluetooth
COM port	Ne
DisplayPort	1
DisplayPort Type-C	0
DVI	0
Formát	micro ATX
HDMI	0
Chipset	Intel B860
LAN	2.5Gbit/s
Led Header	Ano
LPT port	Ne
M.2 slot	3
PCI	0
PCI Express x1	0
PCI Express x16	4
PCI Express x8	0
Počet paměťových slotů	4
Počet Thunderbolt	0
Podpora RAID	0, 1, 5, 10
Pro procesory	Intel
SATA 3	4
Socket (patice)	Socket 1851
Technologie paměti RAM	DDR5
TPM	Ano
USB 2	10
USB 3	7
USB C	2
VGA	0
