ASUS MB Sc LGA1851 PRO H810M-C-CSM, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, 1xDVI-D, mATX

Výrobce: Asus

Buďte první, kdo napíše recenzi tohoto produktu

Kód: KMB14896

Typové označení výrobce : 90MB1KHP-M0EAYC

GTIN (EAN): 4711387856512

Záruka: 36 Měsíců

Sklad	Dostupnost
E-shop	57 ks
Externí	0 ks
Prodejna P-4	0 ks

2 618,00 Kč s DPH

2 164,00 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

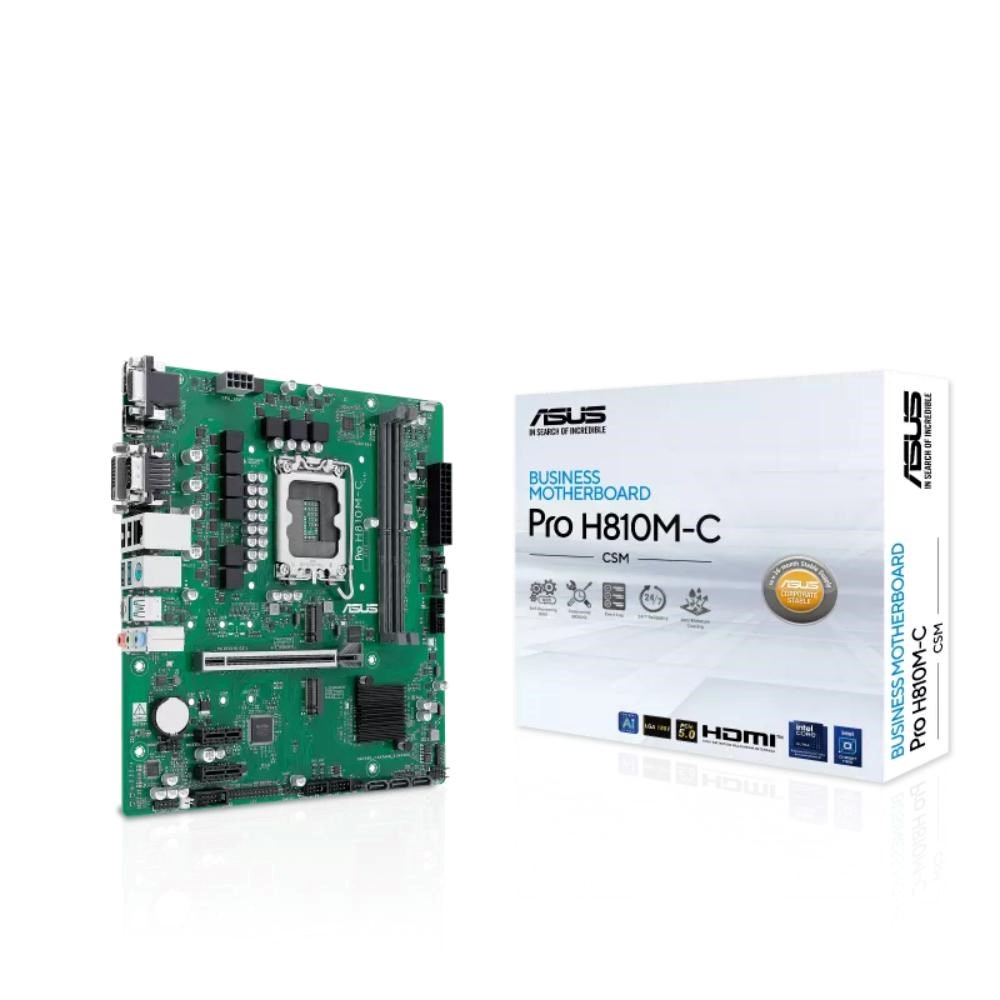

ASUS Pro H810M-C-CSM

Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core™ Ultra Processors (Series 2)
ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced System Security: Self-recovering BIOS to safeguard PCs
Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance
Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
Ultrafast Connectivity: PCIe 5.0 slot, two PCIe 4.0 M.2 slots, DDR5, rear USB 10Gbps Type-A and Type-C
DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers

CPU

Supports Intel Core™ Ultra Processors (Series 2), LGA1851*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel H810 Chipset

Memory

2 x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x VGA port
1 x DVI-D port
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports up to 3 displays simultaneously.

Expansion Slots

Intel Core™ Ultra Processors (Series 2)

1 x PCIe 5.0 x16 slot

Intel H810 Chipset

2 x PCIe 4.0 x1 slots
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel H810 Chipset

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports

Ethernet

1 x Intel 1Gb Ethernet port*
ASUS LANGuard
* With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

USB

Rear USB (Total 6 ports)

2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
2 x USB 5Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x DVI-D port
1 x HDMI™ port
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x COM port
1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x COM Debug header
1 x LPT header
1 x Mono-Out Audio header (with Amp IC)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Special Features

ASUS Q-Design

- Q-LED Core
- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS EZ DIY

- Box headers
- Dual DIMM clips
- SafeSlot

Bespoke Motherboard Design & Business Focused Features

- ASUS Self-Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS Kit*
- Anti-moisture coating
- 24/7 reliability
- Overcurrent protection
* Please contact local FAE for Commercial BIOS kit.

Software Features

ASUS Exclusive Software

ASUS DriverHub

UEFI BIOS

ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS MyHotkey

Remote Management Features

IT Management software supported

- ASUS Control Center Express (ACCE)

Ready for ASUS DASH LAN Card*

1 x SMBUS header
* ASUS DASH LAN Card is sold separately.

BIOS

256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O shield
1 x M.2 anchor package

Documentation

1 x ACC Express activation key card
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor

micro-ATX Form Factor
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )

Specifikace produktů

3.5mm Jack	Ano
Bezdrátové připojení	bez
COM port	Ano
DisplayPort	1
DisplayPort Type-C	0
DVI	1
Formát	micro ATX
HDMI	1
LAN	1Gbit/s
Led Header	Ne
LPT port	Ano
M.2 slot	2
PCI	0
PCI Express x1	2
PCI Express x16	1
PCI Express x8	0
Počet paměťových slotů	2
Počet Thunderbolt	0
Podpora RAID	Bez RAID podpory
Pro procesory	Intel
SATA 3	4
Socket (patice)	Socket 1851
Technologie paměti RAM	DDR5
TPM	Ano
USB 2	6
USB 3	5
USB C	1
VGA	1
Chipset	Intel H810
