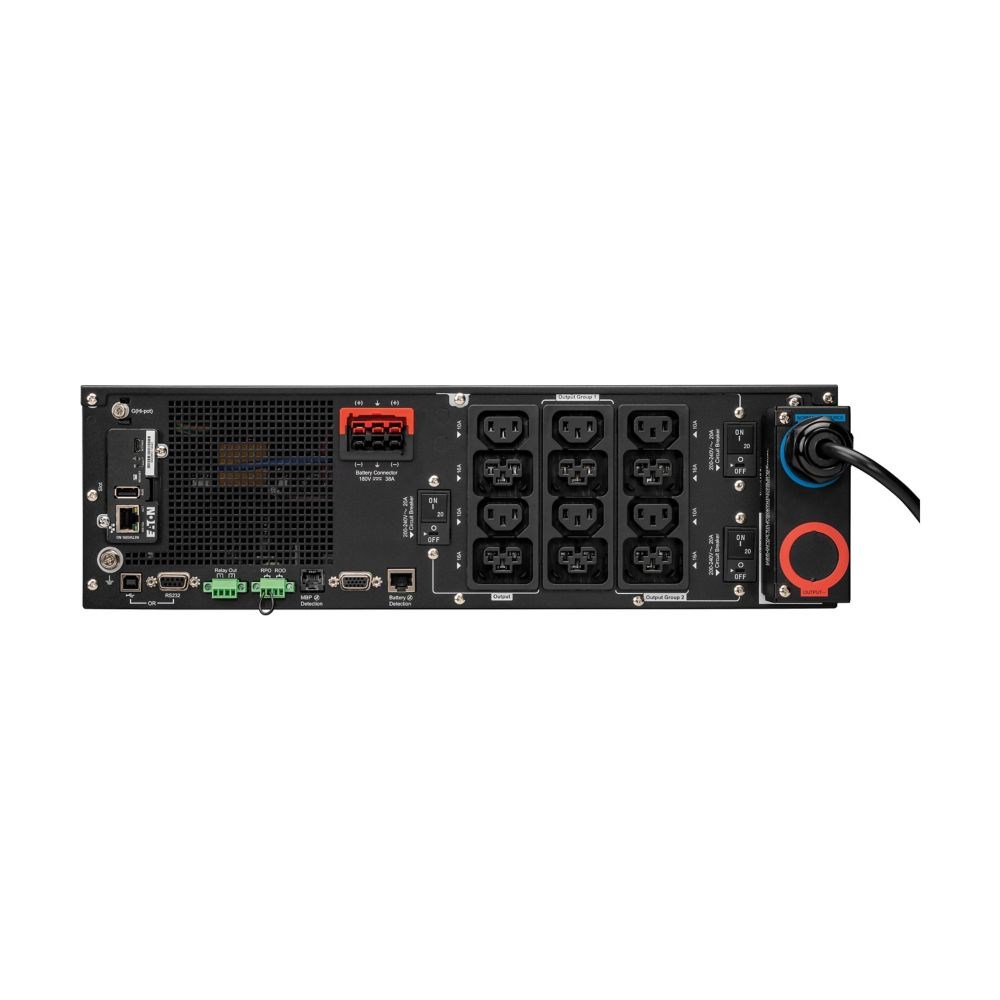

Eaton 9PX 5000i RT3U Netpack, UPS 5000VA, LCD G2

Výrobce: Eaton

Kód: ZAE5218

Typové označení výrobce : 9PX5KIRTNG2

GTIN (EAN): 3553340710551

Záruka: 24 měsíců

117 454,00 Kč s DPH

97 070,00 Kč bez DPH

Množ.:

i h

General specifications

Product Name	Eaton 9PX Gen2 UPS
Catalog Number	9PX5KIRTNG2
EAN	3553340710551
Product Length/Depth	684 mm
Product Height	130 mm
Product Width	440 mm
Product Weight	43.1 kg
Warranty	3 year on electronics, 2 year on battery
Compliances	LVD Directive (CB) EMC Directive RoHS Directive REACH WEEE Directive Packaging Directive Batteries Directive
Certifications	IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM
Model Code	Eaton 9PX 5000i RT3U Netpack G2

Battery type	Sealed, lead-acid
Runtime graph
Battery quantity	15
Battery management	ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable) Automatic battery test Deep discharge protection Automatic recognition of external battery units
Battery rating	12 V / 5 Ah
Extended battery capability	Yes

Receptacle	(6) C13, (6) C39, Hardwired
Voltage	230V
VA rating	5000 VA
Wattage	5000W
Output power factor	1
Output voltage range	200/208/220/230/240 V +/- 1%
Output waveform	Sine wave
Output nominal voltage	230V default (200/208/220/230/240V)
Voltage distortion output (linear load) - max	1
Feed type	1
Topology	Online/Double-conversion

Includes network card	Yes
Communication	USB port (HID compliant) Serial port (RS232) Mini terminal block for remote On/Off Mini-terminal block for remote power off Mini-terminal block for dry contacts outputs (2 contacts) Network card
Ethernet interface	Yes
User interface	Multilingual graphical LCD display
Potential free switch contact	Yes
Expansion slots	One slot, network card included
Software compatibility	Eaton Brlightlayer Software suite
Type of interface	Other

Construction type	482.6 mm (19 inch) device
Package contents	UPS (2) cable glands (2) IEC-IEC output cables (1,2m) USB cable (1,8m) Network Management Card Supports for tower mounting Rack-mounting kit with brackets and slides for UPS Safety instructions Quickstart guide
Internal bypass	Yes
Auto shutdown function	Yes
Color	Black/silver
Efficiency at max. load	96.7
Rack mounting kit	Yes
Hot swap power	No
