    Obrázek Eaton 9SX 11000i G2 Obrázek Eaton 9SX 11000i G2 Obrázek Eaton 9SX 11000i G2

    Omlouváme se - tento produkt již není k dispozici

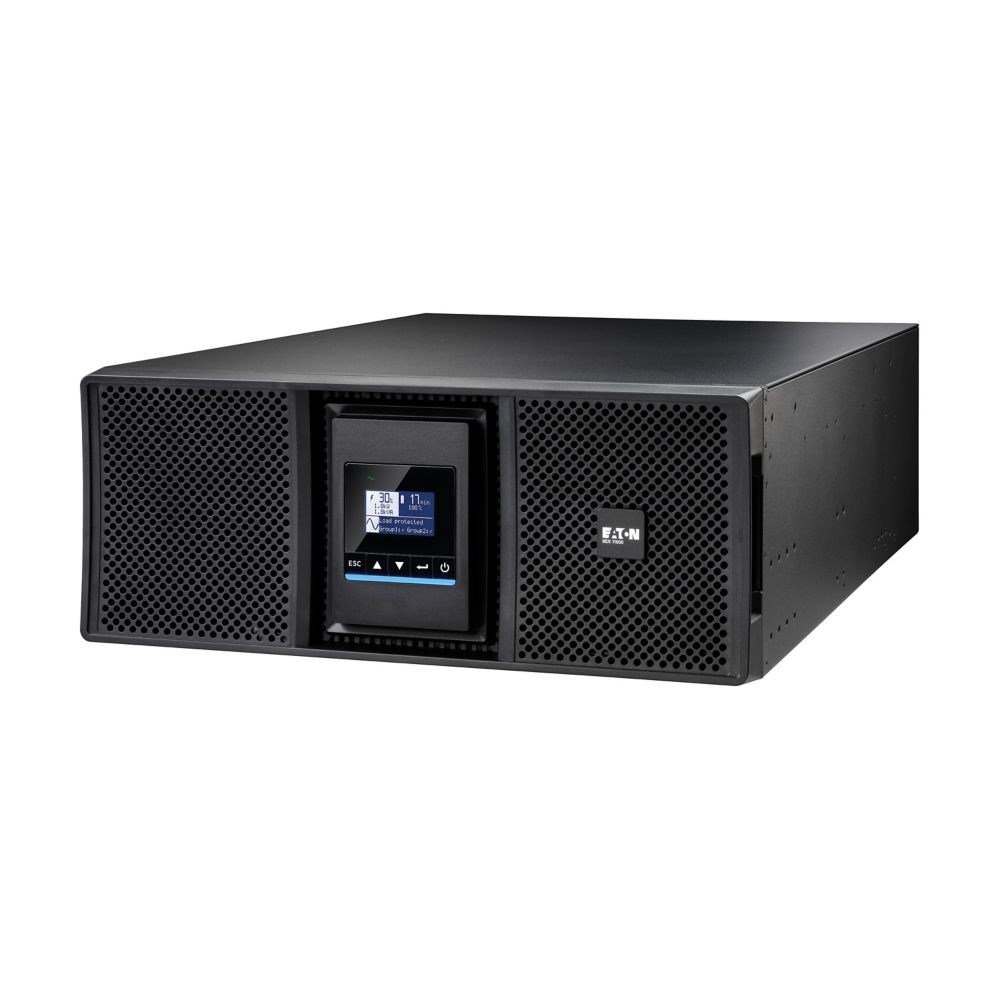

    Eaton 9SX 11000i G2

    Výrobce: Eaton
    Buďte první, kdo napíše recenzi tohoto produktu
    Kód: ZAE5203
    Typové označení výrobce : 9SX11KIG2
    GTIN (EAN): 3553340710698
    Záruka: 24 měsíců
    SkladDostupnost
    E-shop 0 ks
    Externí 0 ks
    Prodejna P-4 0 ks
    159 065,00 Kč s DPH
    131 459,00 Kč bez DPH
    i h
    Doručit na
    *
    *
    Způsob dodání
    Název
    Odhadované doručení
    Cena
    Žádné možnosti dopravy

    General specifications

    Product Name
    Eaton 9SX Gen2 UPS
    Catalog Number
    9SX11KIG2
    EAN
    3553340710698
    Product Length/Depth
    724 mm
    Product Height
    174 mm
    Product Width
    440 mm
    Product Weight
    78.8 kg
    Warranty
    2 year
    Compliances
    LVD Directive (CB)
    EMC Directive
    RoHS Directive
    REACH
    WEEE Directive
    Packaging Directive
    Batteries Directive
    Certifications
    IEC/EN 62040-1
    IEC/EN 62040-2
    IEC/EN 62040-3
    ENERGY STAR certified
    CE
    cULus
    UKCA
    Cm
    Ukr
    RCM
    KCC
    BSMI
    Model Code
    Eaton 9SX 11000i G2

    Technické údaje produktu

    Special features
    • Double conversion topology
    • Constantly regulates voltage and frequency
    • Up to 97.2% Energy efficient, Energy Star qualified, reduce energy and cooling costs
    • Provides more real power (watts) to protect more equipment with a unity power factor
    • Internal bypass allows service continuity in case of UPS fault
    • Graphical LCD display
    • Hot swappable batteries
    Topology
    Online/Double-conversion
    Form factor
    Rack/tower
    Rack size
    4U
    Construction type
    Free standing model
    Color
    Black
    VA rating
    11 kVA
    Wattage
    11 kW
    Rack mounting kit
    No
    Package contents
    • UPS
    • (3) cable glands
    • (2) IEC-IEC output cables (1,2m)
    • USB cable (1,8m)
    • Cable locking systems
    • Supports for tower mounting
    • Safety instructions
    • Quickstart guide
    Internal bypass
    Yes
    Hot swap power
    No
    Auto shutdown function
    Yes
    Primary frequency - max
    70 Hz
    Primary frequency - min
    40 Hz
    Input connection
    Hardwired/fixed connection
    Input nominal voltage
    230V default (200/208/220/230/240V)
    Nominal frequency
    50/60 Hz
    Input frequency range
    40-70 Hz
    Input power factor
    >.99
    Receptacle
    (8) C13, (4) C19, Hardwired
    Number of Outputs C13
    8
    Number of Outputs C19
    4
    Number of outputs hardwired
    1
    Output waveform
    Sine wave
    Voltage
    230V
    Output nominal voltage
    230V default (200/208/220/230/240V)
    Feed type
    1
    Voltage type
    AC
    Runtime graph
    Battery management
    • ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable)
    • Automatic battery test
    • Deep discharge protection
    • Automatic recognition of external battery units
    Battery replacement
    Hot-swappable internal batteries and extended battery modules (EBMs)
    Battery rating
    12 V / 7 Ah
    Battery type
    Sealed, lead-acid
    Extended battery capability
    Yes
    Runtime at half load
    6.3 min
    Communication
    • USB port (HID compliant)
    • Serial port (RS232)
    • Mini terminal block for remote On/Off
    • Mini-terminal block for remote power off
    • Mini-terminal block for dry contacts outputs (2 contacts)
    Expansion slots
    One slot
    Ethernet interface
    No
    Includes network card
    No
    Software compatibility
    Eaton Brlightlayer Software suite
    User interface
    Multilingual graphical LCD display
    Type of interface
    Other
    Potential free switch contact
    Yes
    Altitude
    3000 m
    BTU Rating
    Online: 1050 BTU/hr
    Noise level
    <37 dB at 1 meter
    Relative humidity
    0-95% non-condensing
    Temperature range
    0° to 40°C (32° to 104°F)
    Input voltage - max
    276 V
    Input voltage - min
    100 V
    Output voltage - max
    240 V
    Output voltage - min
    200 V
    Secondary frequency - max
    60 Hz
    Secondary frequency - min
    50 Hz
    Battery quantity
    20
    Efficiency at max. load
    97
    Efficiency (eco-mode)
    99.5
    Input voltage range
    176-276 V (100-276 V with derating)
    Max number of battery packs
    12
    Output frequency
    50/60 Hz
    Output power factor
    1
    Output voltage range
    200/208/220/230/240 V +/- 1%
    Phase (input)
    1
    Phase (output)
    1
    Runtime at full load
    1.9 min
    Voltage distortion output (linear load) - max
    1
    Communication interface
    USB
    RS232
    Power consumption
    308 W
    Specifikace produktů
    Fáze (Vstup/Výstup)1:1
    MožnostiVolitelně Management karta, Prodloužení záložního času, Rozšiřitelný výkon UPS
    PoužitíServer, Data Center
    ProvedeníTower/Rack covertible
    TopologieOn-Line
    Typ výstupuSvorkovnice
    Výška v racku6U
    Zdánlivý výkon (VA)10000
