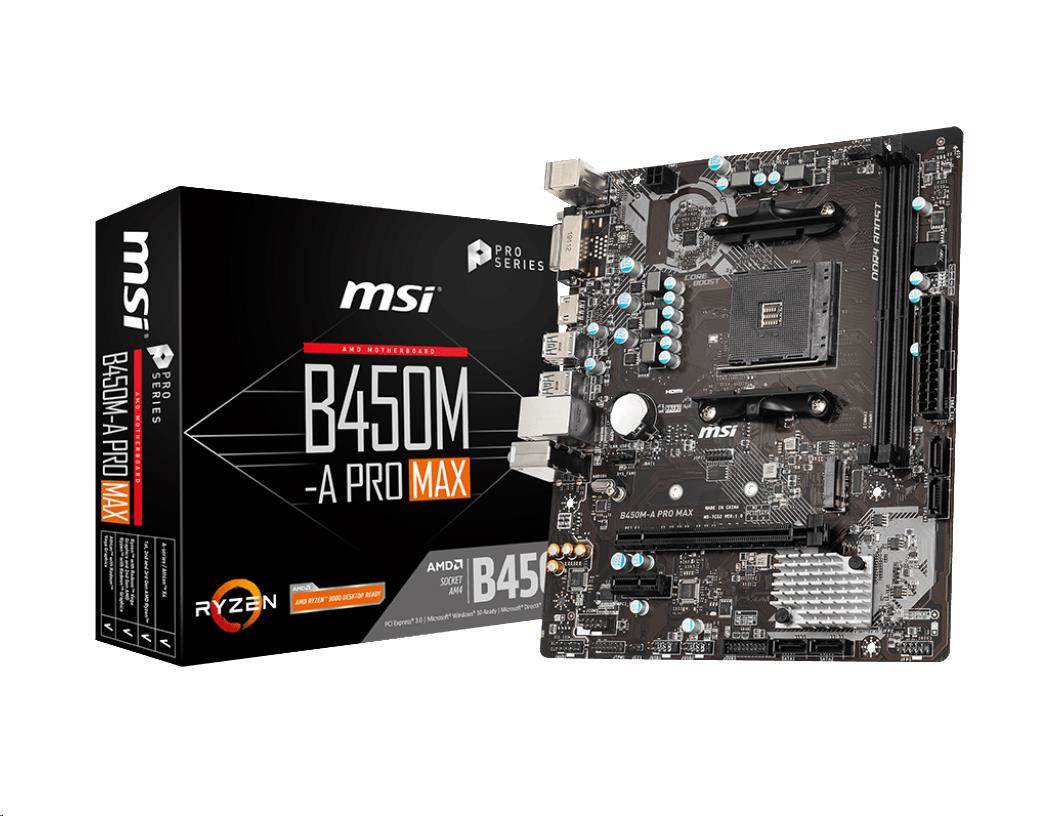

    MSI MB Sc AM4 B450M-A PRO MAX, AMD B450, 2xDDR4, VGA, mATX

    Výrobce: MSI
    Kód: KMB10126
    Typové označení výrobce : B450M-A PRO MAX
    GTIN (EAN): 4719072667696
    Záruka: 36 Měsíců
    SkladDostupnost
    E-shop 99 ks
    Prodejna P-4 0 ks
    Externí 0 ks
    1 501,00 Kč s DPH
    1 240,00 Kč bez DPH
    i h
    Doručit na
    *
    *
    Způsob dodání
    Název
    Odhadované doručení
    Cena
    Žádné možnosti dopravy

    AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1

    • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
    • Supports DDR4 Memory, up to 4133 (OC) MHz
    • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
    • Audio Boost: Reward your ears with studio grade sound quality.
    • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
    • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

    TECHNICAL SPECIFICATIONS

    PROCESSOR
    Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
    CHIPSET
    AMD B450 Chipset
    MEMORY
    • 2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
    • Support DDR4 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)
      For AMD Ryzen Gen3 (R5/R7/R9)
      2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
      For AMD Other CPU
      2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
    • Dual channel memory architecture
    • Supports ECC UDIMM memory (non-ECC mode)
    • Support non-ECC UDIMM memory
    SLOTS
    • 1 x PCIe 3.0 x16 slot
      Supports x16 speed

      1st, 2nd and 3rd Gen AMD Ryzen™
      Supports x8 speed
      Ryzen™ with Radeon™ Vega Graphics
      2nd Gen AMD Ryzen™ with Radeon™ Graphics
      A-series
      Athlon™ X4
      Supports x4 speed
      AMD Athlon™ with Radeon™ Vega Graphics
    • PCIe 2.0 x1 slot
    ONBOARD GRAPHICS
    • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
    • 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz
    STORAGE

    AMD B450 Chipset

    • 4x SATA 6Gb/s ports
      Supports RAID 0, RAID1 and RAID 10
    • 1x M.2 slot (Key M)
      Supports PCIe 3.0 x4 and SATA 6Gb/s
      1st, 2nd and 3rd Gen AMD Ryzen™
      Ryzen™ with Radeon™ Vega Graphics
      2nd Gen AMD Ryzen™ with Radeon™ Graphics
      Supports PCIe 3.0 x2 and SATA 6Gb/s
      AMD Athlon™ with Radeon™ Vega Graphics
      A-series
      Athlon™ X4
      Supports 2242/2280/22110 storage devices
    USB

    AMD B450 Chipset

    • 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
    • 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
    AUDIO

    Realtek ALC892 Codec

    • 7.1-Channel High Definition Audio
    LAN
    • 1 x Realtek 8111H Gigabit LAN controller
    INTERNAL CONNECTORS
    • 1x 24-pin ATX main power connector
    • 1x 4-pin ATX 12V power connector
    • 4x SATA 6Gb/s connectors
    • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
    • 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
    • 1x 4-pin CPU fan connector
    • 1x 4-pin system fan connector
    • 1x Front panel audio connector
    • 2x Front panel connectors
    • 1x TPM module connector
    • 1x Chassis Intrusion connector
    • 1x Serial port connector
    • 1x Clear CMOS jumper
    BACK PANEL PORTS
    • Mouse
    • DVI-D Port
    • USB 3.2 Gen1
    • LAN Port
    • Keyboard
    • HDMI Port
    • USB 2.0 Ports
    • HD Audio Connectors
    DIMENSIONS
    • 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
    • m-ATX Form Factor
    MOUNTING
    • 6 mounting holes
    OPERATING SYSTEM
    • Support for Windows 10 64-bit
    • Support for Windows 7 64-bit
      * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

    Specifikace produktů
    ChipsetAMD
    Integrovaná grafická kartaAno (CPU)
    Integrovaná LAN karta1
    Socket (patice)Socket AM4
    Technologie paměti RAMDDR4
    Formát základní deskymicro ATX
    PCI Express x161
    3.5mm JackAno
