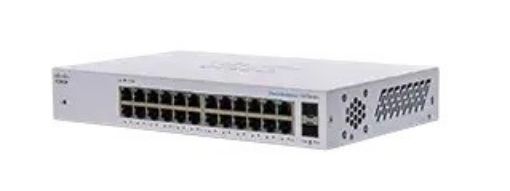

Cisco switch CBS110-24T (24xGbE, 2xGbE/SFP combo,fanless)

Výrobce: Cisco

Buďte první, kdo napíše recenzi tohoto produktu

Kód: LAP6354

Typové označení výrobce : CBS110-24T-EU

GTIN (EAN): 889728326483

Záruka: dož.(omezená)

Sklad	Dostupnost
E-shop	3 ks
Prodejna P-4	0 ks
Externí	0 ks

4 999,00 Kč s DPH

4 131,00 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

Cisco switch CBS110-24T

Switche Cisco Business řady 110 jsou cenově dostupné základní switche typu plug-and-play, které poskytují přepínání gigabitového Ethernetu s klíčovými funkcemi, jako je napájení přes Ethernet (PoE), energetická účinnost a prioritizace provozu pro rychlou a spolehlivou síť malých firem.

Stránky produktu:

CBS110-24T

Quick start guide:

Quick start guide

Switching capacity and forwarding rate
Capacity in millions of packets per second (mpps) (64-byte packets)	35,7 mpps
Switching capacity in gigabits per second (Gbps)	48 Gbps
General
Head-of-Line (HOL) blocking	HOL blocking prevention
MAC table	8K addresses
Jumbo frame	9216 bytes
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
Total system ports	24 Gigabit Ethernet
RJ-45 ports	24 Gigabit Ethernet
Combo ports (RJ-45 + Small Form-factor Pluggable [SFP])	2 SFP (combo with 2 Gigabit Ethernet)
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE - *if present
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Flash	8 MB
CPU	400 MHz ARM
CPU memory	64 MB
Packet Buffer	2 Mbit
Supported SFP modules	MGBSX1 - Multimode fiber - 500 m MGBLX1 - Single-mode fiber - 10 km MGBLH1 - Single-mode fiber - 40 km MGBT1 - UTP cat 5e - 100 m
Environmental
Unit dimensions (W x D x H)	279 x 170 x 44 mm (11 x 6.7 x 1.73 in)
Unit weight	1.56 kg (3.43 lb)
Power	100 to 240V, 50 to 60 Hz, internal, universal
Power consumption (worst case)
System power consumption	110V=16.3W 220V=16.34W
Heat dissipation (BTU/hr)	55,75
Green (power efficiency)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	–4° to 158°F (–20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	5% to 90%, relative, noncondensing
Acoustic noise and Mean Time Between Failures (MTBF)
Fan (number)	Fanless
Acoustic noise	N/A
MTBF at 25°C (hours)	524,296
Warranty	Limited lifetime
Package contents	Cisco Business 110 Series switch Power cord or adapter Quick start guide Mounting kit
Minimum requirements	Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet Cat5e or better Ethernet cable Network interface card for each computer

Specifikace produktů

Management	Ne
Maximální počet portů	24
Provedení	Rack mounted 19"
Technologie	Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika
Funkce	QoS (Quality of service)
Počet portů LAN	24
Počet SFP portů	2
Přenosová rychlost LAN (Mb/s)	1000
Ventilátor	Ne
Počet portů Combo	2
