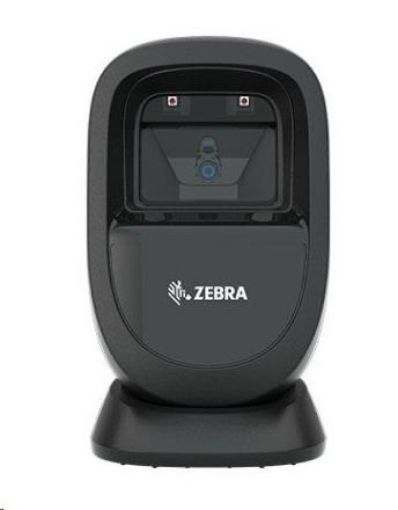

Zebra čtečka DS9308, 2D, SR, multi-IF, kit (RS-232), black

standard range), 0-27.9cm reading distance, multi-interface (RS-232, KBW, USB, RS-485), protection class: IP52, incl.: cable (RS-232), power supply unit (EU, UK), colour: black

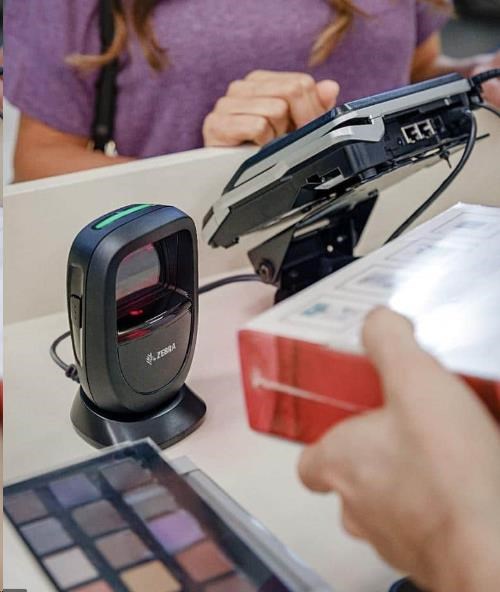

Řada Zebra DS9300 se skládá z obzvláště prostorově úsporných snímacích imagerů. Díky svému kompaktnímu tvaru a 45 ° kabelovému konektoru se vejde téměř kdekoli a vypadá dobře - ideální pro oblast POS v pohostinství a maloobchodě, stejně jako pro módní butiky nebo hotelnictví.
Řada DS9300 zachycuje 1D a 2D čárové kódy, zejména malé kódy s vysokou hustotou, digitální čárové kódy z monitorů, jakož i OCR, DotCodes a volitelné Digimarcs v téměř jakémkoli stavu. Zvláštní výhodou je volitelná deaktivace štítků proti krádeži EAS (pouze modely EAS) - stačí jen naskenovat štítek. Mezi výhody patří megapixelové čidlo s vysokým rozlišením, mikroprocesor o 800 MHz s exkluzivní technologií PRZM společnosti Zebra, jasné potvrzení dobrého skenování, jakož i rozhraní USB, RS-232, klávesnicový klín a rozhraní RS-485 (dle zvoleného modelu). Snímače jsou také robustní: certifikace IP52 a odolné proti nárazu z výšky až 1,5 m. Navíc je řada Zebra DS9300 zpětně kompatibilní s kabely a napájecími zdroji DS9208 a je podporována nabídkou služeb Zebra OneCare Select, OneCare Essential a DataCapture DNA.

Dimensions 5.7 in. H x 3.4 in. W x 3.3 in. D 14.5 cm. H x 8.6 cm. W x 8.3 cm. D Weight 11.2 oz. / 318.0 g Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply Operating Current at Nominal Voltage (5.0V) Presentation mode: 335mA Trigger mode: 350mA Standby Current (Idle) at Nominal Voltage (5.0V) Presentation mode: 135mA Trigger mode: 75mA Color Alpine White, Midnight Black Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Keyboard Support Supports over 90 international keyboards Electronic Article Surveillance Compatible with Checkpoint EAS deactivation system
User Indicators Good decode LEDs, rear view LEDs, beeper (Adjustable tone and volume)

Swipe Speed (Presentation) Up to 120 in./305 cm. per second for 13 mil UPC in optimized mode Light Source Aiming pattern: circular 617 nm amber LED
Illumination 660 nm Hyper Red LED Imager Field of View 52° H x 33° V nominal
Image Sensor 1280 x 800 pixels
Minimum Print Contrast
15%
Skew Tolerance +/-60°
Pitch Tolerance +/-60°
Roll Tolerance 360°

Graphics Format Support
Images can be exported as bitmap, JPEG or TIFF
Image Quality 109 PPI on a 4.1 in. x 5.8 in./A6 sized document
User Environment Operating Temperature 32.0° F to 122.0° F / 0.0° C to 50.0° C Storage Temperature -40.0° F to 158.0° F / -40.0° C to 70.0° C Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft. / 1.5 m to concrete Tumble Specification Designed to withstand 1,000 tumbles in 1.5 ft. /0.5 m tumbler
Environmental Sealing IP52
Electrostatic Discharge (ESD)
ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV indirect
Ambient Light Immunity
0 to 10,000 foot-candles/0 to 107,700 Lux

EN 50581:2012 RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000 REACH 1907/2006
Electrical Safety IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015 UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. LED Safety IEC 62471:2006 (Ed.1.0) EN 62471:2008 (LED) EMI/RFI FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS

Multi-mount bracket, locking-mount bracket

1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) 2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, securPharm, DotCode, Dotted DataMatrix OCR OCR-A, OCR-B, MICR, US currency Digimarc Available on specific models only Refer to Product Reference Guide for complete list of symbologies. Minimum Element Resolution Code 39: 3 mil; Code 128: 3 mil; Data Matrix: 5 mil; QR Code: 5 mil

Symbology/Resolution Near/Far Code 39: 3 mil 0 in./0 cm — 2.5 in./6.35 cm Code 39: 5 mil 0 in./0 cm — 5.0 in./12.7 cm Code 39: 20 mil 0 in./0 cm — 11.0 in./27.9 cm Code 128: 3 mil 0 in./0 cm — 2.0 in./5.1 cm Code 128: 5 mil 0 in./0 cm — 4.0 in./10.2 cm PDF 417: 6.7 mil 0 in./0 cm — 4.0 in./10.2 cm UPC: 13 mil (100%) 0 in./0 cm — 8.8 in./22.4 cm Data Matrix: 10 mil 0 in./0 cm — 4.5 in. /11.4 cm QR: 20 mil 0 in./0 cm — 7.5 in./19.1 cm * Printing resolution, contrast, barcode width and ambient light dependent.

Subject to the terms of Zebra’s hardware warranty statement, the DS9300 Series is warranted against defects in workmanship and materials for a period of 3 (three) years from the date of shipment. Complete Zebra hardware product warranty statement: www.zebra.com/warranty
