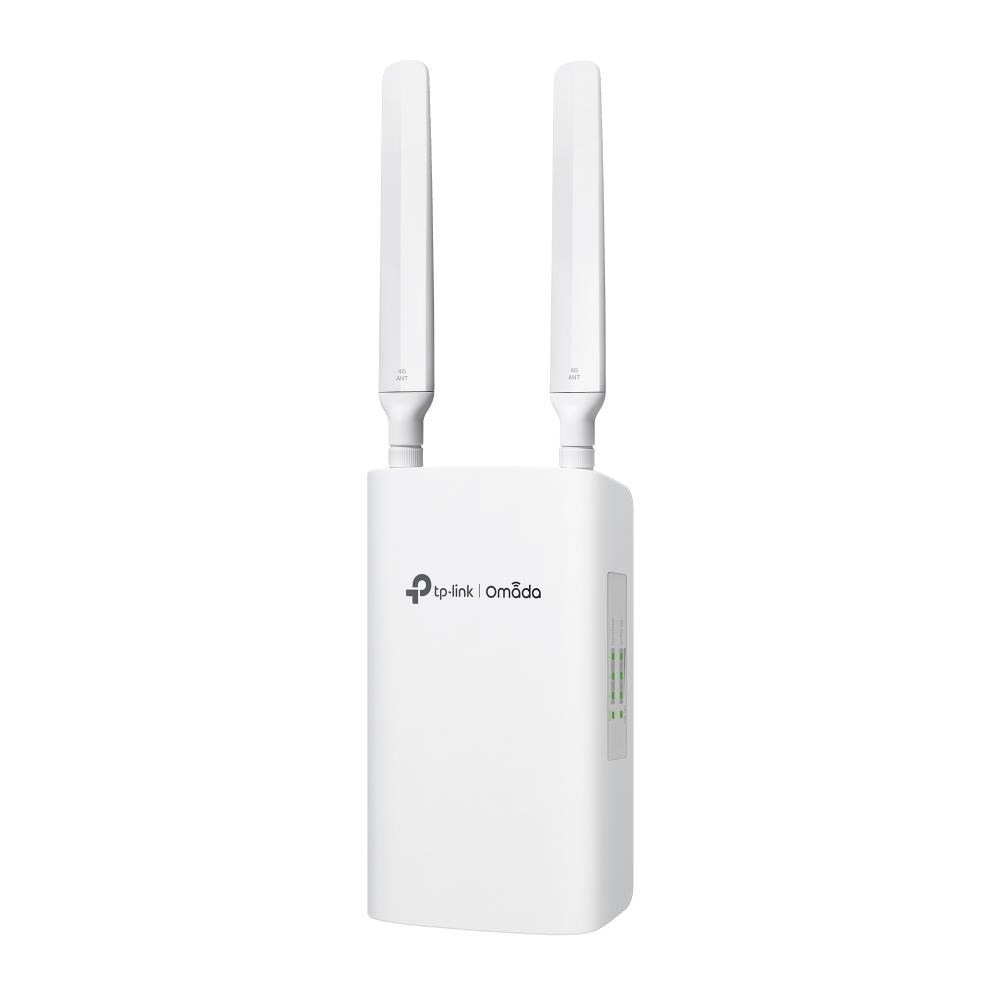

TP-Link ER703WP-4G-Outdoor OMADA VPN 4G+Cat6 venkovní router (AX3000,3xGbEWAN/LAN,1xPoE+,2xPoE-out,1xnanoSIM,IP55)

Výrobce: Tp-Link

Buďte první, kdo napíše recenzi tohoto produktu

Kód: LAF1162

Typové označení výrobce : ER703WP-4G-Outdoor

GTIN (EAN): 8885020626858

Záruka: 60 měsíců

Sklad	Dostupnost
E-shop	0 ks
Externí	0 ks
Prodejna P-4	0 ks

8 976,00 Kč s DPH

7 418,00 Kč bez DPH

Množ.:

i h

TP-Link OMADA ER703WP-4G-Outdoor

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

4G+ Cat6 s rychlostí až 300 Mb/s
AX3000 Wi-Fi 6 s 2402 Mb/s na 5 GHz a 574 Mb/s na 2.4 GHz
3 × Gigabitové WAN/LAN porty (2 × PoE Out, 1 × PoE In)
1 × Slot pro Nano SIM kartu
Napájení přes 802.3at/bt PoE nebo 12V/2A DC
Automatická záloha WAN mezi 4G a Ethernetem s vyvažováním zátěže
IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
Centralizovaná správa
Odolnost vůči povětrnostním vlivům (IP55)

Learn more about Omada Cloud SDN

https://www.tp-link.com/cz/business-networking/omada-router-wifi-router/er703wp-4g-outdoor/>

Technické specifikace

4G
Network Type	LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9 00/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41
SIM Type	1× Nano SIM Card
Frequency	• Downlink: 300 Mbps; • Uplink: 50 Mbps
SECURITY
DPI	Application control via DPI / Updated app library
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering • URL Filtering • Web Security
ARP Inspection	• Sending GARP Packets • ARP Scanning • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
HARDWARE FEATURES
Interface	• 3 Gigabit WAN/LAN Ports
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button	Reset Button
Power Supply	802.3at/bt PoE; 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash	256 MB NAND
DRAM	512 MB DDR4
LED	4G Signal, WLAN, WAN/LAN, SYS
Dimensions ( W x D x H )	6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)
Antenna	• Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas • LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting	Pole/Wall-Mounting
Max Power Consumption	POE:62.9W max @ 220V/50Hz 25? DC: 16.6W max @ 220V/50Hz 25?
PERFORMANCE
DPI Throughput	• TCP: 1131 Mbps • UDP: 974 Mbps
GRE	• Unencrypted: 450.3Mbps • Encrypted: 277.6Mbps
WireGuard VPN	462.8Mbps
Concurrent Session	120
New Sessions /Second	3,8
NAT (Static IP)	945.9Mbps / 950.2Mbps
NAT(DHCP)	947.3Mbps / 949.4Mbps
NAT(PPPoE)	916.9Mbps / 946.3Mbps
NAT (L2TP)	878.9Mbps / 778.9Mbps
NAT (PPTP)	852.2Mbps / 775.9Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 568.3Mbps • ESP-SHA256-AES256: 559.8Mbps • ESP-SHA384-AES256: 565.6Mbps • ESP-SHA512-AES256: 550.0 Mbps
OpenVPN	85.1Mbps
L2TP VPN Throughput	• Unencrypted: 858.7Mbps • Encrypted: 467.0Mbps
PPTP VPN Throughput	• Unencrypted: 876.2Mbps • Encrypted: 182.6Mbps
SSL VPN Throughput	86.6Mbps
66 Byte Packet forwarding rate	1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate	81275 pps / 81275 pps
WIRELESS FEATURES
Advanced Functions	• Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio)
Guest Network	Support
BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
SMS	Receive / Send SMS
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
ACL	IP/Port/Protocol/Domain Name Filtering
Advanced Routing	• Static Routing • Policy Routing • RIP • OSPF
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-Based Session Limit
VPN
GRE	Only in Standalone Mode
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10) • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10) • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5) • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	• 20 Tunnels
AUTHENTICATION
Web Authentication	• No Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever • LDAP
MANAGEMENT
Omada App	Yes.
Centralized Management	• Omada Cloud Essentials • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• ER703WP-4G-Outdoor • Mounting Kits • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 90% non-condensing

Další vlastnosti	Podpora IPv6, PoE( Power over ethernet), Podpora 4G/LTE, Podpora Wi-Fi Mesh, Management, FTP server, VLAN
Funkce	Router, VPN
Gigabit ethernet	Ano
Počet portů LAN	3
Podporované standardy	802.11a, 802.11ac, 802.11b, 802.11g, 802.11n, 802.11ax
Přenosová rychlost Wi-Fi (Mb/s)	2100-2700
Slot na SIM kartu	Ano
Typ antény	Integrovaná
USB port	Ne
