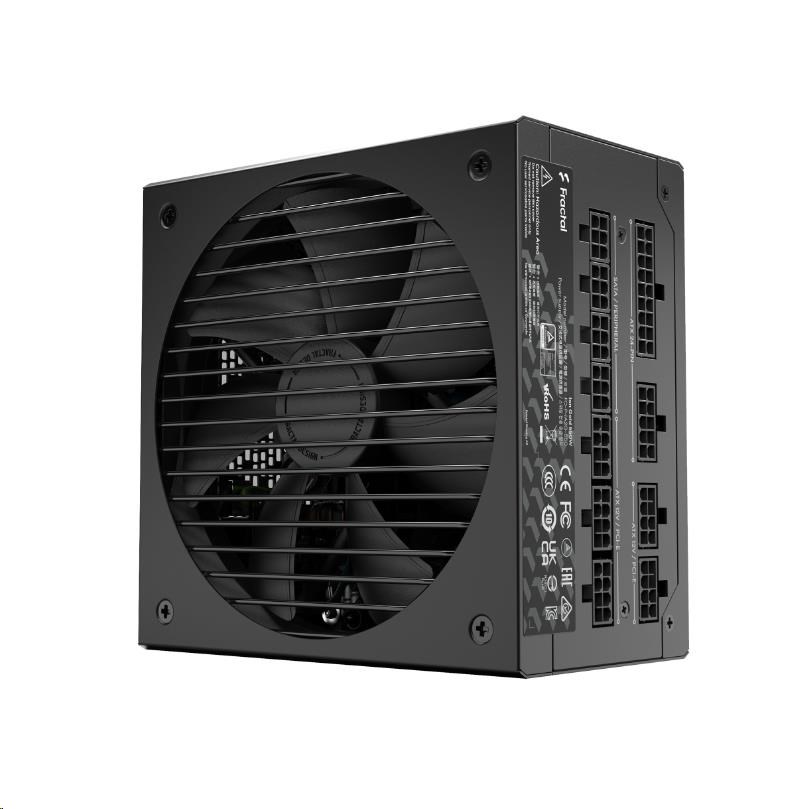

    FRACTAL DESIGN zdroj Ion 550W GOLD, modular, 80+ Gold

    Výrobce: Fractal
    Kód: ZDR7234
    Typové označení výrobce : FD-P-IA2G-550-EU
    GTIN (EAN): 7340172702771
    Záruka: 72 měsíců
    SkladDostupnost
    E-shop 0 ks
    Prodejna P-4 0 ks
    Externí 0 ks
    2 250,00 Kč s DPH
    1 860,00 Kč bez DPH
    i h
    Doručit na
    *
    *
    Způsob dodání
    Název
    Odhadované doručení
    Cena
    Žádné možnosti dopravy

    Ion Gold 550W

    The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

    • 80PLUS Gold Efficiency rating for reduced noise and energy consumption
    • Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
    • Fully modular design for reduced clutter and maximum ease of installation

    TECHNICAL SPECIFICATIONS

    80PLUS certification
    Gold
    Modular cables
    Fully Modular
    Fan type
    140 mm LLS bearing Fractal Design Dynamic series fan
    Maximum operating temperature (full load)
    40°C, 50°C at 80% load
    Semi-passive operation
    No
    Capacitors
    Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
    Life expectancy
    100,000 hours
    Cable type
    Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
    Input voltage
    100-240V AC
    Input frequency
    50-60 Hz
    Input current
    10A/5A
    Protection features
    Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
    PSU specification compliance
    ATX12V 2.52; EPS12V 2.92
    PSU color
    Black
    Sleep state compliance
    C6/C7 compatible
    Approvals & certifications
    CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
    Warranty
    7 years
    Connectors
    ATX 24-pin
    1
    EPS/ATX12V
    1
    PCIe
    2
    SATA
    6
    Peripheral
    6
    DC Output
    3.3V
    20A
    5V
    20A
    3.3V and 5V combined
    110W
    12V
    45.8A
    -12V
    0.3A
    +5Vsb
    3A
    Total Power
    550W
    Cable Configuration (length in mm between connectors)
    ATX 24-pin
    500
    ATX 12V 4+4 pin
    600
    EPS12V 8-pin
    N/A
    PCIe 6+2 pin
    550+150
    SATA
    500+150+150
    Peripheral
    500+150+150

    Specifikace produktů
    Efektivita zdroje80 Plus Gold
    KonektoryPCIe 8-pin, SATA 15-pin
    Konektory pro základní deskuATX 24-pin
    Modulární kabelážAno
    Výkon zdroje (ve W)550
