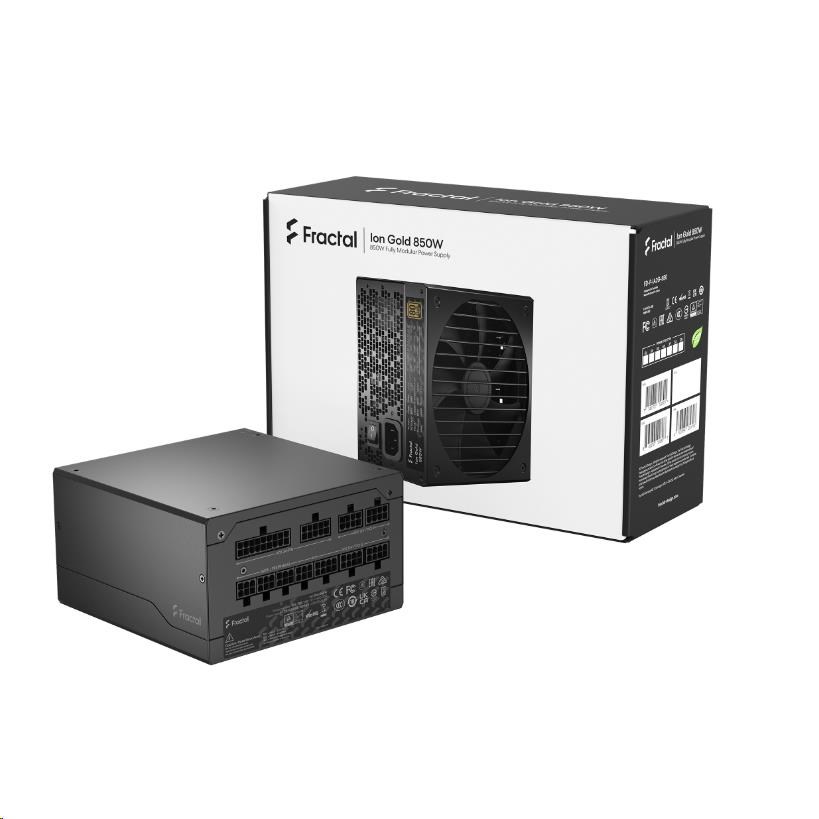

FRACTAL DESIGN zdroj Ion 850W GOLD, modular, 80+ Gold

Výrobce: Fractal

Buďte první, kdo napíše recenzi tohoto produktu

Kód: ZDR7243

Typové označení výrobce : FD-P-IA2G-850-EU

GTIN (EAN): 7340172702801

Záruka: 72 měsíců

Sklad	Dostupnost
E-shop	20 ks
Prodejna P-4	0 ks
Externí	0 ks

3 736,00 Kč s DPH

3 088,00 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

Ion Gold 850W

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

80PLUS Gold Efficiency rating for reduced noise and energy consumption
Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
Fully modular design for reduced clutter and maximum ease of installation

TECHNICAL SPECIFICATIONS

80PLUS certification	Gold
Modular cables	Fully Modular
Fan type	140 mm LLS bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load)	40°C, 50°C at 80% load
Semi-passive operation	No
Capacitors	Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
Life expectancy	100,000 hours
Cable type	Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
Input voltage	100-240V AC
Input frequency	50-60 Hz
Input current	10A/5A
Protection features	Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance	ATX12V 2.52; EPS12V 2.92
PSU color	Black
Sleep state compliance	C6/C7 compatible
Approvals & certifications	CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Warranty	7 years
Connectors
ATX 24-pin	1
EPS/ATX12V	2
PCIe	6
SATA	8
Peripheral	3
DC Output
3.3V	22A
5V	22A
3.3V and 5V combined	120W
12V	70.8A
-12V	0.3A
+5Vsb	3A
Total Power	850W
Cable Configuration (length in mm between connectors)
ATX 24-pin	500
ATX 12V 4+4 pin	600
EPS12V 8-pin	600
PCIe 6+2 pin	550+150
SATA	500+150+150+150
Peripheral	500+150+150

Specifikace produktů

Efektivita zdroje	80 Plus Gold
Konektory	PCIe 8-pin, SATA 15-pin
Konektory pro základní desku	ATX 24-pin
Modulární kabeláž	Ano
Výkon zdroje (ve W)	850
