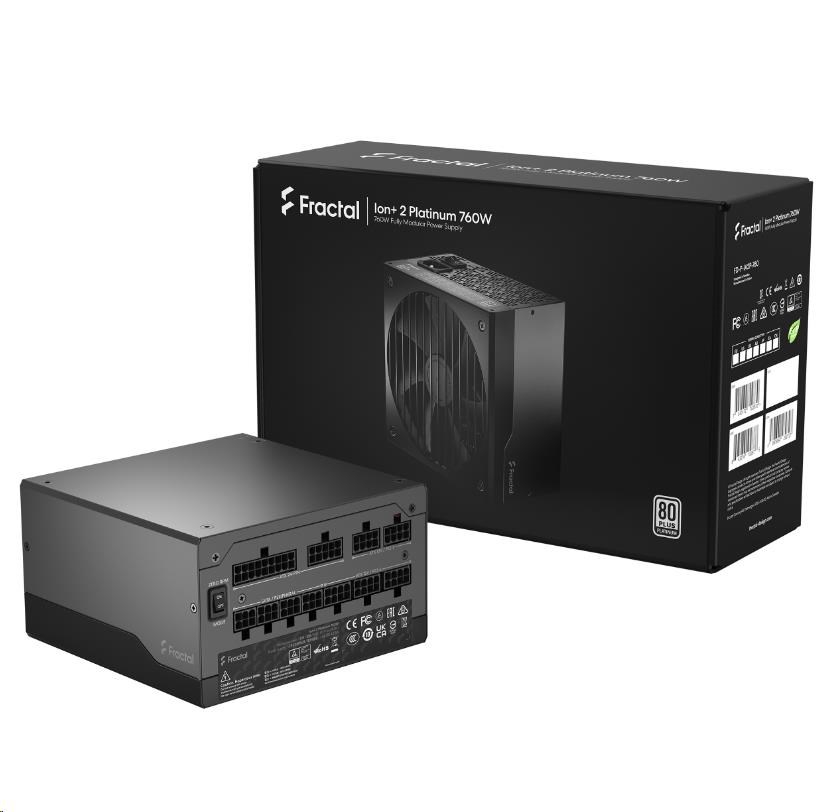

FRACTAL DESIGN zdroj Ion+ 2 760W PLATINUM, modular, 80+ Platinum

Výrobce: Fractal

Kód: ZDR7252

Typové označení výrobce : FD-P-IA2P-760

GTIN (EAN): 7340172702870

Záruka: 120 měsíců

3 952,00 Kč s DPH

3 266,00 Kč bez DPH

Množ.:

i h

Ion+ 2 Platinum 760W

The Ion+ 2 Platinum is a high-performance fully modular PSU with whisper-quiet operation, enhanced cable flexibility and superior output quality.

80PLUS Platinum efficiency for optimized electricity use and reduced heat generation
Great electrical output quality with tight voltage regulation and low ripple and noise
Fully modular design for reduced clutter and maximum ease of installation and with Fractal Design UltraFlex™ (extra bendable soft cables) for better cable management

TECHNICAL SPECIFICATIONS

80PLUS certification	Platinum
Modular cables	Fully Modular
Fan type	140 mm FDB bearing Fractal Design Dynamic series fan
Maximum operating temperature (full load)	50°C
Semi-passive operation	Yes, user selectable (Zero RPM)
Capacitors	Japanese
Life expectancy	100,000 hours
Cable type	Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
Input voltage	100-240V C
Input frequency	50-60 Hz
Input current	10A/5A
Protection features	Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
PSU specification compliance	ATX12V 2.52; EPS12V 2.92
Sleep state compliance	C6/C7
Approvals & certifications	CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
Warranty	10 years
Connectors
ATX 24-pin	1
ATX12V 4+4 pin / EPS12V 8-pin	2
PCIe 6+2 pin	6
SATA	10
Peripheral	4
DC Output
3.3V	22A
5V	22A
3.3V and 5V combined	120W
12V	63.3A
-12V	0.3A
+5Vsb	3A
Total Power	760W
Cable Configuration (length in mm between connectors)
ATX 20+4 pin	600
ATX 12V 4+4 pin	700
EPS12V 8-pin	600
PCIe 6+2 pin	550+120
SATA	400+150+150+150 mm & 650+150mm
Peripheral	400+150+150+150 mm

Specifikace produktů

Efektivita zdroje	80 Plus Platinum
Konektory	PCIe 8-pin, SATA 15-pin, 8pin CPU 1x, 8pin CPU 2x, PCIe 6-pin
Konektory pro základní desku	ATX 24-pin, ATX 20-pin, EPS 8-pin
Modulární kabeláž	Ano
Formát zdroje	ATX
Podsvícení	bez podsvícení
Vlastnosti zdroje	Modulární kabeláž
Výkon zdroje (W)	760
