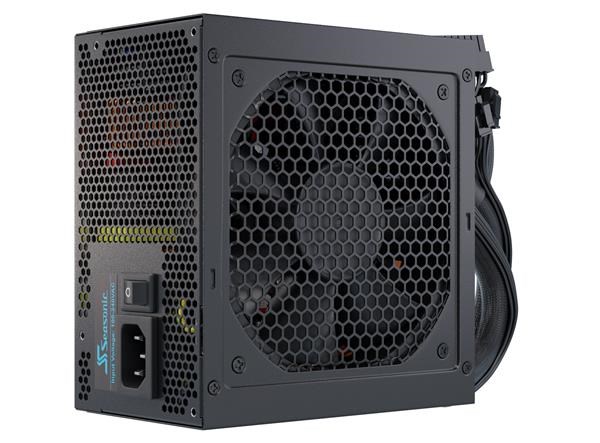

    SEASONIC zdroj 750W G12 GM-750, 80+ GOLD

    Výrobce: Seasonic
    Kód: ZDR7174
    Typové označení výrobce : G12-GM-750
    GTIN (EAN): 4711173877387
    Záruka: 60 měsíců
    SkladDostupnost
    E-shop 0 ks
    Prodejna P-4 0 ks
    Externí 0 ks
    2 167,00 Kč s DPH
    1 791,00 Kč bez DPH
    i h
    Doručit na
    *
    *
    Způsob dodání
    Název
    Odhadované doručení
    Cena
    Žádné možnosti dopravy

    G12 GM-750

    The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).

    TECHNICAL SPECIFICATIONS

    80PLUS
    Gold
    Cybenetics Efficiency Level
    TBA
    Cybenetics Noise Level
    TBA
    Form Factor
    Intel ATX 12 V
    Dimensions (L x W x H)
    140 x 150 x 86 mm
    Fan Size
    120 mm
    Fan Control
    Smart and Silent Fan Control
    Fan Bearing
    Sleeve Bearing
    Life Expectancy
    25,000 hours at 40 °C, 15 % - 65 % RH
    Modularity
    Fixed cables
    Cable type
    Flat black cables
    Operating Temperature
    0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
    MTBF @ 25 °C, excl. fan
    100,000 hours
    AC Input
    Full Range
    Protection
    OPP, OVP, OCP, SCP
    Safety and EMC
    cTUVus, TUV, CB, CCC, BSMI, CE, FCC
    Environmental Compliance
    Energy Star, RoHS, WEEE, ErP Lot 6, REACH
    Warranty
    5 Years
    AC Input
    Voltage: 100 V - 240 V
    Current: 10 A Max.
    Frequency: 50 Hz - 60 Hz

    Specifikace produktů
    Efektivita zdroje80 Plus Gold
    Formát zdrojeATX
    KonektoryPCIe 8-pin, SATA 15-pin, Molex
    Konektory pro základní deskuATX 24-pin
    Výkon zdroje (W)750
