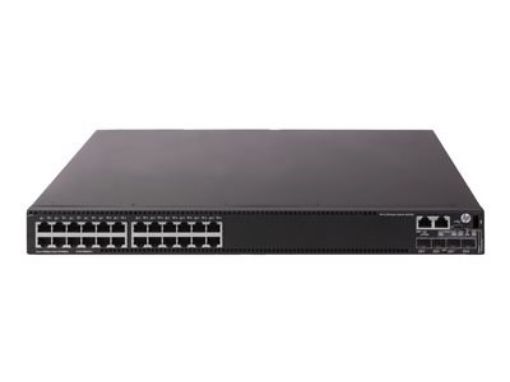

BAZAR - HPE FlexNetwork 5130 24G 4SFP+ 1-slot HI Switch (Must select min 1 power supply jd362B) JH323A RENEW - Rozbaleno

Key Features

• Scalable 10GbE uplinks and 9-chassis IRF with 80 GB/s stacking
• PoE+ (30W per port) across all ports
• 4 built-in SFP+ 10GbE uplinks
• Support for OpenFlow 1.3
• MACsec security support

Standard Features

Software-Defined Networking

• OpenFlow 1.3:
  Enables SDN by separating control and data planes.

Management

• Remote CLI management, RADIUS/HWTACACS authentication
• Multiple config files, session logging, SNMP/RMON support
• LLDP and sFlow for network visibility
• Remote mirroring and management VLANs

Security

• ACLs (IPv4/IPv6, VLAN, port-based)
• IEEE 802.1X, MAC-based authentication, port security
• Guest VLAN, secure management via SSH/SSL/SNMPv3
• DoS protection (DHCP guard, IP source guard, ARP protection)
• IPv6 security: DHCPv6, ND Snooping, IPv6 source guard

Quality of Service (QoS)

• Broadcast rate control, advanced classifier-based QoS
• SP, WRR, SP+WRR queue management
• Traffic policing with CAR and line rate support

Connectivity

• Auto-MDIX, IEEE 802.3x flow control
• Up to 48x 1GbE ports, 4x 10GbE SFP+
• IEEE 802.3at PoE+ and pre-standard PoE device support
• Ethernet OAM (802.3ah), jumbo frames up to 9KB

Performance

• Non-blocking fabric (up to 216Gb/s)
• Wirespeed ACLs using TCAM

High Availability

• IRF for simplified redundancy and high availability
• Smart Link failover < 100ms
• Spanning Tree (STP, RSTP, MSTP, PVST+)
• Dual internal redundant power supply (up to 1440W PoE+)

Layer 2 Switching

• 32K MAC table, 4094 VLANs (802.1Q), QinQ
• Port aggregation, DLDP, jumbo frames

Layer 3 Services and Routing

• Static routing (IPv4 & IPv6), RIP v1/v2
• Policy-Based Routing (PBR), ARP, DHCP, loopback interfaces
• UDP helper, route maps, DHCP relay/server

Convergence and Voice

• LLDP, LLDP-MED, CDP compatibility
• Voice VLANs, IP multicast snooping (IGMP), MSDP
• PoE allocation via LLDP-MED, IEEE class, or manually

Manageability

• Dual flash images, multiple config storage
• IPv6 management tools: pingv6, Telnetv6, SNMPv6, etc.
• Virtual cable tests for diagnostics

Warranty and Support

Limited Lifetime Warranty For details, see: HPE Warranty Summary
Software and support: HPE Networking SupportEnvironmental Specification

Power Supply Options

• HPE X361 150W 100–240VAC to 12VDC Power Supply
  – Model: JD362B
• HPE X361 150W 48–60VDC to 12VDC Power Supply
  – Model: JD366B

I/O Ports and Slots

• 24 × RJ-45 autosensing 10/100/1000 ports
• 4 × SFP+ 10GbE ports
• 1 × Port expansion module slot (supports 6 SFP+ or 2 1/10GBASE-T ports)
• 1 × Dual-personality console port (RJ-45 or mini USB)
• 1 × Out-of-band management port (RJ-45)
• 1 × USB 2.0 port

Power and Cooling

• 2 × Power supply slots (1 required)
• Airflow: Front (port side) to Back (power side)

Physical Characteristics

• Dimensions: 17.32” W × 14.17” D × 1.72” H (1U)
• Weight: 7.5 kg (16.53 lb)

Memory and Performance

• Memory: 2 GB SDRAM, 512 MB Flash
• Packet buffer: 4 MB
• Throughput: up to 154.8 Mpps
• Switching Capacity: 168 Gbps
• MAC Address Table: 32,768 entries
• Routing Table: 4096 IPv4, 2048 IPv6
• Latency: < 5 µs (1G), < 3 µs (10G)

Environmental

• Operating Temp: 0°C to 45°C (32°F to 113°F)
• Storage Temp: -40°C to 70°C (-40°F to 158°F)
• Humidity: 10% to 90% (operating), 5% to 95% (non-op)
• Acoustic: 52.8 dB (low), 66.7 dB (high)

Electrical Characteristics

• Frequency: 50/60 Hz
• Voltage: 100–240 VAC / -48 to -60 VDC (depending on PSU)
• Max Power: 107 W
• Idle Power: 55 W
• Heat Dissipation: 365–392 BTU/hr

Certifications

Management

• CLI, Web GUI, SNMP v1/v2/v3
• IMC – Intelligent Management Center compatible
• DHCP, Telnet, TFTP, FTP, SSH, NTP, RMON

Standards and Protocols

General Networking Protocols

• IEEE 802.1 series (ad, ak, AE, AX, D, p, Q, s, v, w, X)
• IEEE 802.3 series (i, u, x, ab, ac, ad, ae, af, at, az, z)
• IPv4/IPv6: RFC 791, RFC 2460, RFC 4291, etc.
• Routing/ARP: RFC 826, 1812, 1256, etc.
• Multicast: RFC 2236, RFC 3810, RFC 4541
• DHCP/BOOTP: RFC 951, RFC 2131, RFC 3046, etc.

Security Protocols

• IEEE 802.1X Port Access Control
• MACsec (802.1AE)
• RADIUS (RFC 2138, 2865), TACACS+ (RFC 1492)
• SSL, SSHv2, SNMPv3 security models

Network Management

• SNMP v1/v2c/v3 (RFC 1157, 1901–1907, 3416–3418)
• LLDP (IEEE 802.1AB), LLDP-MED (ANSI/TIA-1057)
• RMON (RFC 2819), Entity MIB, Interface MIB
• IMC support, CLI, Telnet, SSH, HTTP, HTTPS

QoS/CoS Support

• RFC 2474, 2597, 3246, 3260 – Differentiated Services

MIBs and SNMP

• MIB-II (RFC 1213), Ethernet MIBs (RFC 2665, 2668)
• Bridge MIB (RFC 1493), RMON (RFC 1757)
• Power Ethernet MIB (RFC 3621), Interface MIB (RFC 2863)
