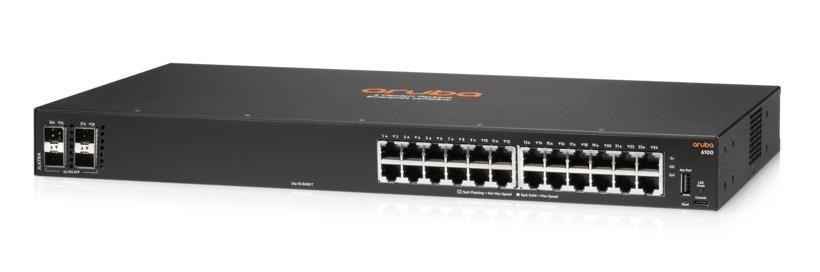

HPE Aruba Networking CX6100 24G 4SFP+ Switch

Frequency

50 / 60 Hz

AC Voltage

100-127 VAC / 200-240 VAC

Current

0.6 A / 0.4 A

Power Consumption (230 VAC)

Idle: 15.4W Max Power (w/o PoE): 33W

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/

CSA-C22.2 No. 60950-1;

EN 60825-1

UL 62368-1 Ed. 2; IEC

62368-1 Ed. 2; EN 62368-

1:2014

VCCI-CISPR 32, Class A; CNS

13438; ICES-003 Issue 6

Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016 /

CISPR-32, Class A

EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)

Generic

CISPR 24 / CISPR 35

EN

EN 55024:2010 /

EN 55035:2017

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

• RFC 1591 DNS (client)
• SSHv1/SSHv2 Secure Shell
• IEEE 802.1D MAC Bridges
• IEEE 802.1p Priority
• IEEE 802.1Q VLANs
• IEEE 802.1s Multiple Spanning Trees
• IEEE 802.1w Rapid Reconfiguration of Spanning Tree
• IEEE 802.3 Type 10BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• IEEE 802.3at Power over Ethernet
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3x Flow Control
• RFC 768 UDP
• RFC 783 TFTP Protocol (revision 2)
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 1350 TFTP Protocol (revision 2)
• RFC 2131 DHCP client
• RFC 4330 Simple Network Time Protocol (SNTP) v4
• RFC 951 BOOTP (VLAN 1 Only)
• RFC 1542 BOOTP Extensions (VLAN 1 only)
• IGMPv2/IGMPv3
• IGMP/MLD Snooping
• RFC 1981 IPv6 Path MTU Discovery
• RFC 2460 IPv6 Specification
• RFC 2925 Remote Operations MIB (Ping only)
• RFC 3315 DHCPv6 (client only)
• RFC 3513 IPv6 Addressing Architecture
• RFC 3596 DNS Extension for IPv6
• RFC 3176 sFlow
• RFC 4022 MIB for TCP
• RFC 4113 MIB for UDP (Partially)
• RFC 4251 SSHv6 Architecture
• RFC 4252 SSHv6 Authentication
• RFC 4253 SSHv6 Transport Layer
• RFC 4254 SSHv6 Connection
• RFC 4293 MIB for IP
• RFC 4419 Key Exchange for SSH
• RFC 4443 ICMPv6
• RFC 4861 IPv6 Neighbor Discovery
• RFC 4862 IPv6 Stateless Address Auto-configuration
• RFC 1213 MIB
• RFC 1493 Bridge MIB
• RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
• (Partial support. MIB objects supported: ieee8021BridgeBasePort, ieee8021BridgeBasePort, ieee8021BridgePortMrpJoinTime, ieee8021BridgePortMrpLeaveTime, ieee8021BridgePortMrpLeaveAllTime)
• RFC 2737 Entity MIB
• RFC 2863 The Interfaces Group MIB
• IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
• RFC 1098 A Simple Network Management Protocol (SNMP)
• ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
• SNMPv1/v2c/v3
• RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
• RFC 1098 A Simple Network Management Protocol (SNMP)
• RFC 2474 DiffServ precedence, with 2/4/8 queues per port
• RFC 2475 DiffServ Architecture
• RFC 2597 DiffServ Assured Forwarding (AF)
• RFC 2598 DiffServ Expedited Forwarding (EF)
• IEEE 802.1X Port Based Network Access Control
• RFC 1492 TACACS+
• RFC 2138 RADIUS Authentication
• RFC 2866 RADIUS Accounting
• Secure Sockets Layer (SSL)
