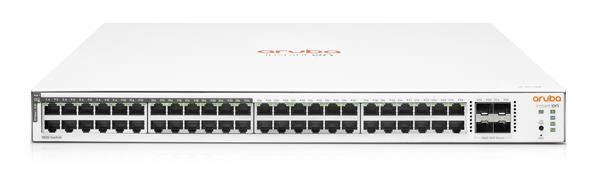

Aruba Instant On 1830 48G 4SFP 370W Switch (24x RJ45 10/100/1000 24x Class4 PoE)

Výrobce: HP

Buďte první, kdo napíše recenzi tohoto produktu

Kód: LAP7176

Typové označení výrobce : JL815A#ABB

GTIN (EAN): 190017524429

Záruka: doživotní

Sklad	Dostupnost
E-shop	8 ks
Prodejna P-4	0 ks
Externí	1 ks

13 784,00 Kč s DPH

11 392,00 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

HPE Networking Instant On Switch 48p Gigabit CL4 PoE 4p SFP 370W 1830 (JL815A)

	Aruba Instant On 1830 8G Switch (JL810A)	Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)			Aruba Instant On 1830 24G 2SFP Switch (JL812A)		Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch (JL813A)	Aruba Instant On 1830 48G 4SFP Switch (JL814A)	Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch (JL815A)
I/O ports and slots
	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3af Class 3 PD (port 1) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only	8 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-4) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		24 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-12) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports		48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports	48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP 1GbE ports
Physical Characteristics
Dimensions	157.0(d) x 173.0(w) x 39.1(h) mm	195.1(d) x 245.1(w) x 43.9(h) mm		215.9(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm		253.0(d) x 443.0(w) x 43.9(h) mm	351.0(d) x 443.0(w) x 43.9(h) mm
Weight	1.70 lb (0.77 kg)	3.40 lb (1.54 kg)		5.50 lb (2.49 kg)		7.65 lb (3.47 kg)		7.80 lb (3.54 kg)	10.90 lb (4.94 kg)
Processor and Memory
	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB		ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	"RM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB	ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5MB

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Performance

100 Mb latency

< 5.2 uSec

1000 Mb latency

< 2.8 uSec

10000 Mb latency

n/a

Throughput (Mpps)

11.90 Mpps

38.68 Mpps

77.37 Mpps

Capacity

16 Gbps

52 Gbps

104 Gbps

MAC address table size (# of entries)

8,000 entries

16,000 entries

Reliability MTBF (years)

188.2

105.9

203.6

96.6

114.4

83.5

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Nonoperating/ storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/ storage relative humidity

15% to 95% @ 140°F (60°C)

Altitude

up to 10,000 ft (3 km)

Acoustics

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.4 Bel LpAm (Bystander) = 19 dB

LWAd = 4.0 Bel LpAm (Bystander) = 25 dB

Notes:

¹Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and (for JL813A and JL815A) 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

100% traffic

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.4 Bel LpAm (Bystander) = 19 dB

LWAd = 3.5 Bel LpAm (Bystander) = 20 dB

100% traffic / 0% PoE

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 3.5 Bel LpAm (Bystander) = 20 dB

100% traffic / 50% PoE

Fanless

LWAd = 3.1 Bel LpAm (Bystander) = 17 dB

LWAd = 4.0 Bel LpAm (Bystander) = 25 dB

100% traffic / 100% PoE

Fanless

LWAd = 5.1 Bel LpAm (Bystander) = 35 dB

LWAd = 5.7 Bel LpAm (Bystander) = 41 dB

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Electrical Characteristics

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200- 240VAC

Current

12V -- 1.0A

1.0A/0.5A

0.4A/0.3A

2.7A/1.4A

0.9A/0.6A

5.2A/2.6A

Maximum power rating

100-127V: 8.09W 200-220V: 8.05W

100-127V: 86.07W 200-220V: 83.67W

100-127V: 19.1W 200-220V: 19W

100-127V: 244.6W 200-220V: 237.2W

100-127V: 40.2W 200-220V: 40W

100-127V: 462.5W 200-220V: 452.5W

Idle power

100-127V: 5.8W 200-220V: 5.9W

100-127V: 8.3W 200-220V: 8.2W

100-127V: 7.6W 200-220V: 7.8W

100-127V: 14.5W 200-220V: 13.4W

100-127V: 17.7W 200-220V: 17.7W

100-127V: 25.8W 200-220V: 25.4W

PoE power

13W max Class 3 PD

65 W Class 4 PoE

195 W Class 4 PoE

370 W Class 4 PoE

Power supply

External power adapter (included)

Internal power supply

Safety

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

L 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

EN/IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013

EN/IEC 62368-1, 2nd. & 3rd. Ed.

UL 62368-1, 2nd. & 3rd. Ed.

CAN/CSA C22.2 No. 62368-1, 2nd. & 3rd. Ed.

EN/IEC 60825-1:2014 Class 1

Emissions

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

EN 55032:2015/CISPR 32, Class A

FCC CFR 47 Part 15: 2018 Class A

ICES-003 Class A

VCCI Class A

CNS 13438 Class A

KN 32 Class A

AS/NZS CISPR 32 Class A

Aruba Instant On 1830 8G Switch

(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch

(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch

(JL813A)

Aruba Instant On 1830 48G 4SFP Switch

(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch

(JL815A)

Immunity

Generic

EN 55035, CISPR 35, KN35

EN 55035, CISPR 35

ESD

EN/IEC 61000-4-2

Radiated

EN/IEC 61000-4-3

EFT/Burst

EN/IEC 61000-4-4

Surge

EN/IEC 61000-4-5

Conducted

EN/IEC 61000-4-6

Power frequency magnetic field

EN/IEC 61000-4-8

Voltage dips and interruptions

EN/IEC 61000-4-11

Harmonics

EN/IEC 61000-3-2

Flicker

EN /IEC 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting

Mounting positions and supported racking

Supports table-top mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using base surface mounting holes

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Must be mounted top surface up. To prevent possible impact to longterm reliability, product should not be mounted upside-down

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rack-mounting

Supports wall-mounting with ports facing either up or down

Suports under-table mounting using the brackets provided

Aruba Instant On 1830 8G Switch
(JL810A)

Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch (JL811A)

Aruba Instant On 1830 24G 2SFP Switch
(JL812A)

Aruba Instant On 1830 24G 12p Class4 PoE 2SFP 195W Switch
(JL813A)

Aruba Instant On 1830 48G 4SFP Switch
(JL814A)

Aruba Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
(JL815A)

Transceivers

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

Aruba 1G SFP RJ45 T 100m Cat5e Transceiver (J8177D)

Product	1830 48G 24p CL4 Switch
Part Number	JL815A
Switch Type	Fixed Port
Network OS	Aruba Instant On
Routing / Switching	Layer 2 Only
Management	Smart Managed
Included Accessories
Included Accessories	N/A
Physical Properties
Dimensions	17.4(w) x 13.82(d) x 1.72(h) in (44.3 x 35.1 x 4.39 cm) (1U height)
Weight	10.9 lb (4.94 kg)
Port Types
LAN Ports	48 RJ-45 autosensing 10/100/1000 ports IEEE 802.3at Class 4 PoE (ports 1-24) (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASETX: half or full; 1000BASE-T: full only
Dual Personality Ports	N/A
1/2.5/5/10GbE	N/A
SFP Ports	4 SFP 1GbE ports
SFP+ Ports	N/A
SFP28 Ports	N/A
SFP56 Ports	N/A
XFP Ports	N/A
X2 Ports	N/A
CX4 Ports	N/A
10GBASE-T Ports	N/A
QSFP+ Ports	N/A
QSFP28 Ports	N/A
QSFP56 Ports	N/A
QSFP-DD Ports	N/A
Module Slots	N/A
Console Port	N/A
Power Supplies
Power supply slots	N/A
Power supply requirements	Internal power supply
Memory and Processor
Memory and Processor	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Gigabit Module	N/A
10Gb Module	N/A
Management Module	N/A
Fabric Module	N/A
I/O Module	N/A
Mounting
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
Performance
100 Mb Latency	< 5.2 uSec
1000 Mb Latency	< 2.8 uSec
10 Gbps Latency	N/A
40 Gbps Latency	N/A
Throughput	77.37 Mpps
Switching Capacity	104 Gbps
Switch Fabric Speed	N/A
Routing Table Size	N/A
MAC Address Table Size	16000 entries
MACsec Capable Hardware	N/A
MACsec Software Support	N/A
MACsec with EAP-TLS	N/A
MACsec Capable Uplink Ports	N/A
Electrical Characteristics
Description	N/A
Voltage	100 - 240 VAC
Current	5.2A/2.6A
Frequency	50/60 Hz
Maximum Power Consumption	463 W
Maximum Heat Dissipation	1579.82 BTU/hr
PoE power	N/A
Notes	N/A
Management
Management	Aruba Instant On Portal, Web browser, SNMP Manager

Specifikace produktů

Funkce	QoS (Quality of service), VLAN (virtual local area network), DHCP snooping, L2, Web management/Smart switch, Stohovatelnost, VPN
Management	SNMP/RMON
Maximální počet portů	48
Počet SFP portů	4
Počet SFP+ portů	0
Podporované standardy PoE	802.3at, 802.3af
Provedení	Desktop, Rack mounted 19"
Ventilátor	Ano
Počet portů Combo	4
Počet portů LAN	48
Počet PoE Out portů	48
Technologie	Gigabit ethernet + Gigabit optika, Gigabit Ethernet 1000Mbps, Gigabit optika

0 recenze(í)

Napište vlastní recenzi Close

Pouze registrovaní uživatelé mohou psát recenze

Vaše jméno *

Váš e-mail *

Váš dotaz *

Aruba Instant On 1830 48G 4SFP 370W Switch (24x RJ45 10/100/1000 24x Class4 PoE)

Metody Platby
