HPE PL ML30g11 E-2414 (2.6G/4C) 16G 4LFF NHP VROC 350Wn NBD311

HPE PL ML30g11 E-2414 (2.6G/4C8T) 16G (P64336) 4LFF NHP VROC 350Wn NBD311

P65093-421

Intel Xeon E-2414 (4 core, 2.80 GHz, 12 MB Intel Smart Cache, 55W)

1 processor included Processor core available 4 core

12 MB Intel Smart Cache

2.80 GHz

1x HPE ML30 Gen10 Plus 350W FIO Power Supply Kit

4, for detailed descriptions refer to the QuickSpecs

HPE DDR5 Standard Memory
4 (4 DIMM slots per processor, 2 channels per processor, 2 DIMMs per channel)
Maximum Capacity (UDIMM) 128GB (4 x 32GB UDIMM @ 3600 MT/s)

None ship standard, 4 LFF supported

None ship standard ODD Optional

1x Non-hot plug non-redundant system fan

Embedded 1Gb 4-Port Ethernet Adapter

Embedded Intel VROC SATA software RAID

HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM.

Server warranty includes 3-year parts, 1-year labor, and 1-year on-site support with next business day response. Additional info regarding worldwide limited warranty and technical support is available at: www.hpe.com/services/support.
Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, visit www.hpe.com/services/support.

SKU Number	P65093-421

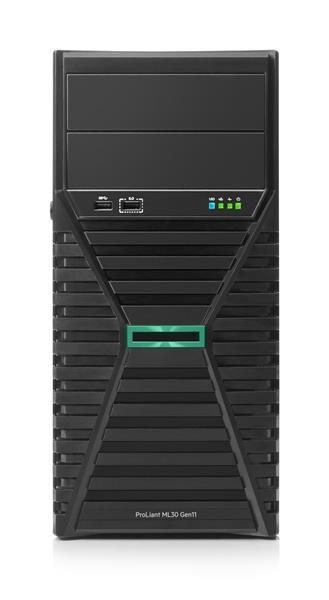

Model Name	HPE ProLiant ML30 Gen11 E-2414 2.6GHz 4-core 1P 16GB-U 4LFF-NHP 350W PS Server
Processor	Intel Xeon E-2414 (4-Core, 2.8 GHz, 55W)
Number of Processors	One processor
Memory	16 GB UDIMM DDR5 4800 MT/s (1x 16 GB ( Runs at 4400 MT/s per processor support, System maximum memory capacity - up to 64GB via field upgrade (4x 16GB)
Network Controller	HPE embedded 1Gb 4-port BCM5719 network adapter
Storage Controller	Embedded Intel VROC SATA software RAID. SATA Only. NHP models do not support internal Smart Array controllers.
Hard Drive	None included
Internal Storage	4 LFF HDD Bays (Non Hot Plug)
Optical Drive Bay	Optional Slimline ODD Bay Kit (P65102-B21) consumes 1media bay Notes: Upto 1optical drivebay
PCI-Express Slots	1 PCIe 5.0 slots, 3 PCIe 4.0 slots
Power Supply	1 350W ATX Power Supply
Fans	1 non-hot plug non-redundant system fan

Management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (Requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (Require licenses) Security Embedded TPM Notes: Disabled on AA1 SKUs Form Factor Tower (4U) Warranty 3-year parts, 1-year labor, 1-year onsite support with next business day response.
