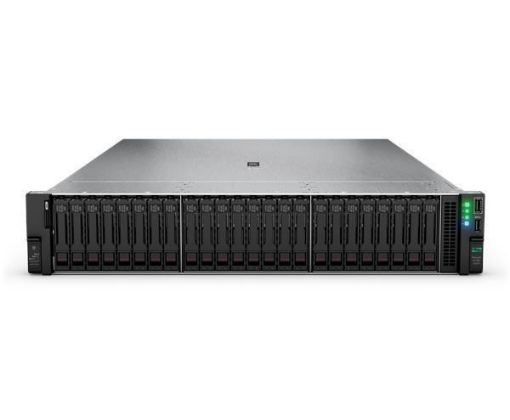

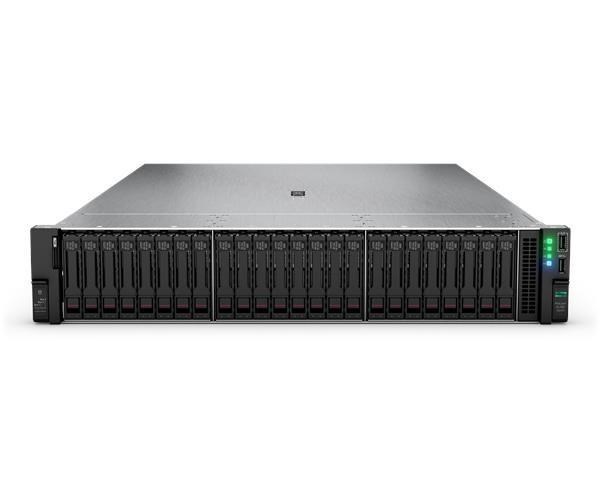

HPE PL DL380g11 4509Y (2.6/8C) 32G (P64706) MR408i-o/4G 8-26SFF 1000W 4x1G P70456-421 RENEW
SKU Number
P70456-421
Model Name
HPE PL DL380g11 4509Y (2.6/8C/22.5M) 32G MR408i-o/4G 8-26SFF 1000Wti 4x1G NDB333
Chassis
HPE ProLiant DL380 Gen11 8SFF NC Configure-to-order Server
CPU
4509Y (8 core, 2.6 GHz, 125W)5416S (16 core, 2.0GHz, 150W)
Number of CPU
One with standard heatsink
Memory
32 GB (1x32 GB , 5600 MT/s)
Notes: Runs at 4400 MT/s due to processor limitation.
Network Controller
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Notes: No embedded networking
Storage Controller
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller and Smart Storage Battery
Hard Drive
None Included
Internal Storage
8 SFF CTO Server (upgradeable to 24 SFF front + 2SFF rear)
PCIe Slots
3-slots (x8, x16, x8) as standard; upgradeable to 8-slots in a 2 processor configuration
Power Supply
1x HPE 1000W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit (-421)
Fans
4 Standard
Management
HPE iLO 6
Security
Trusted Platform Module (TPM) Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature and can be disabled in the BIOS setting.
Rail Kit
SFF Easy Install Rail Kit; cable management arm
Energy Star
Energy Star 3.0
Form Factor
2U Rack
Warranty
3-year parts, 3-year labor, 3-year onsite support with next business day response.
Intel Xeon Silver 4509Y (8 core, 2.60 GHz, 22.5 MB L3, 125W)
1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Up to 8 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs
None ship standard, 8 SFF supported
Optional DVD-ROM Optional via Universal Media Bay External support only
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
Product dimensions (metric)
Infrastructure management
HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM
3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit https://www.hpe.com/support.
