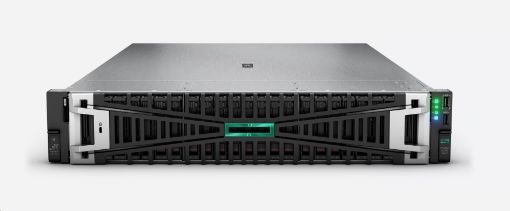

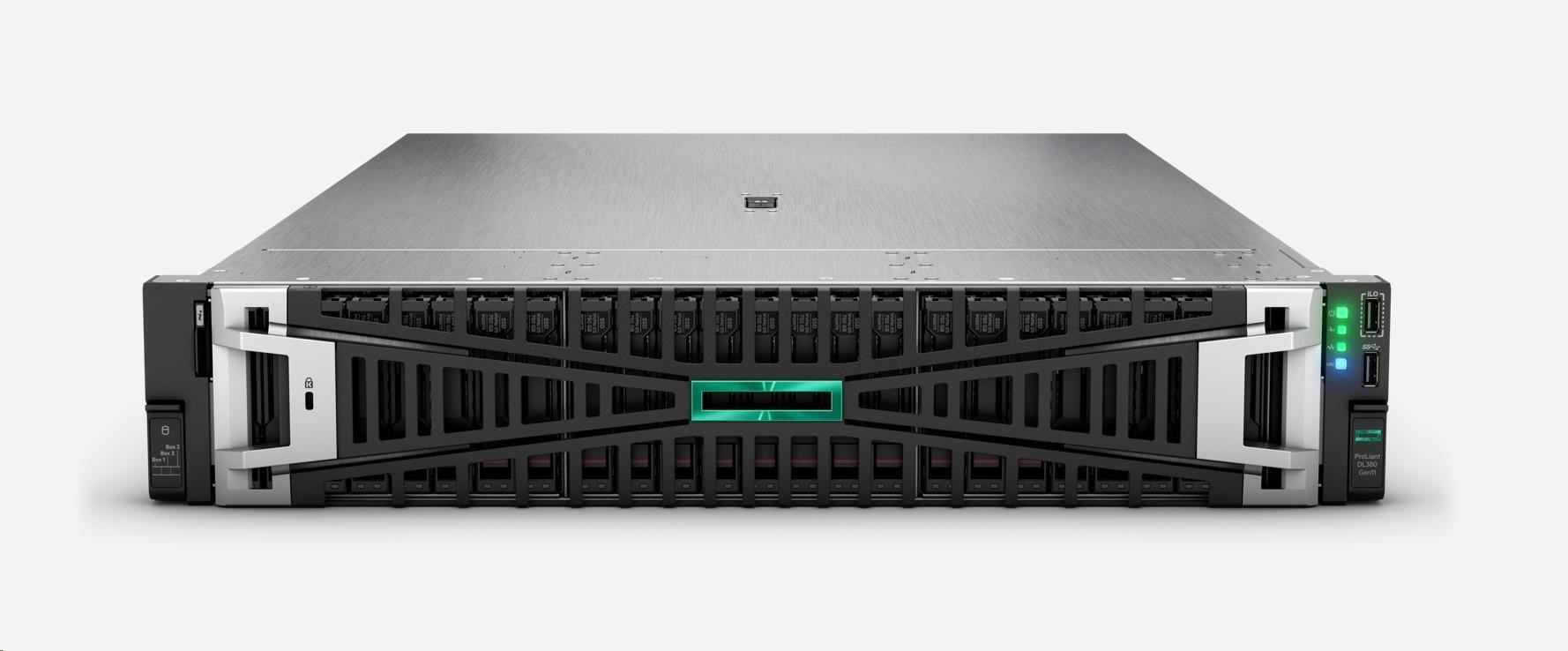

HPE PL DL380g11 4510 (2.4/12C) 2x32G (p64706) 2x2.4TB/10k 2x1000W 8SFF MR416i-o/8G 4p1G + WS25STD + 5users Smart Choice
SKU Number
P71675-425
Model Name
HPE PL DL380g11 4510 (2.4/12C) 2x32G (p64706) 2x2.4TB/10k MR416i-o/8G 2x1000W 8SFF 4x1G WS2025STD Smart Choice
CPU
4510 (12 core, 2.4 GHz, 150W)
Number of CPU
One with standard heatsink
Memory
64 GB (2x32 GB 5600 MT/s) Notes: Runs at 4400 MT/s due to processor limitation.
Network Controller
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE
Storage Controller
HPE MR416i-o/8G
Hard Drive
2x 2x4TB/10k SAS
Internal Storage
8SFF (upgradeable to 24/30SFF)
PCIe Slots
3-slots (x8, x16, x8) as standard; upgradeable to 8-slots in a 2 processor configuration
Power Supply
2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Fans
4 Standard
Management
HPE iLO 6
Security
Trusted Platform Module (TPM) Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature and can be disabled in the BIOS setting.
Rail Kit
HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit
Energy Star
Energy Star 3.0
Form Factor
2U Rack
Warranty
3-year parts, 3-year labor, 3-year onsite support with next business day response.
OS
WS2025STD
