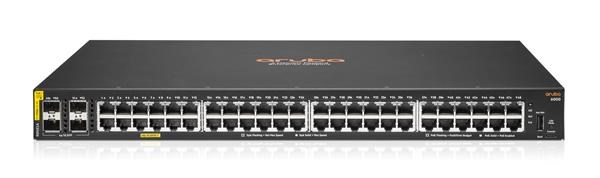

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

HPE Aruba CX 6000 48G PoE Switch - Specifications

Technical Specifications

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

Product Number	R8N85A
Differentiator	48x 10/100/1000BASE-T ports 4x 1G/1G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host Port
Ports	48x 10/100/1000BASE-T ports, 4x 1G SFP ports
Memory and Processor	Dual Core ARM Cortex A9 @ 1016 MHz 8 GB DDR3 (max) 16 GB eMMC
Latency	1 Gbps: 1.9 µSec
Throughput	77.3 Mpps
Switching Capacity	104 Gbps
PoE Capability	370W Class 4 PoE/PoE+
Routing Capabilities	Static
Input Voltage	100–127 VAC / 200–240 VAC
Operating Temperature	32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) Derate -1°C per 1000 ft (305 m) from 5000 ft to 10000 ft (3.0 km)
Power Consumption	Max (w/o PoE): 45W Max (with PoE): 480W
Dimensions (metric)	4.4 x 44.2 x 30.5 cm
Weight	5.0 kg

HPE Aruba CX 6000 Series Switch Comparison

CX 6000 Series Switch Comparison

Model Overview

Model	R8N85A 48G PoE	R8N86A 48G	R8N87A 24G PoE
Ports	48x 10/100/1000BASE-T, 4x 1G SFP	48x 10/100/1000BASE-T, 4x 1G SFP	24x 10/100/1000BASE-T, 4x 1G SFP
USB Ports	1x USB-C Console, 1x USB Type-A Host
PoE	370W (Class 4)	None	370W (Class 4)
Power Supply	Fixed
Fans	Fixed
Dimensions (cm)	4.39 x 44.2 x 30.48	4.39 x 44.2 x 24.74	4.39 x 44.2 x 26.82
Weight (kg)	5.02	3.42	4.19

Performance & System

CPU	Dual Core ARM Cortex A9 @ 1016 MHz
Memory	4 GB DDR3, 16 GB eMMC
Packet Buffer	12.38MB (4.5MB Ingress / 7.875MB Egress)
Switching Capacity	104 Gbps	104 Gbps	56 Gbps
Throughput	77.3 Mpps	77.3 Mpps	41.6 Mpps
Latency	1.9 µs	1.9 µs	1.5 µs
IPv4/IPv6 Hosts	IPv4: 1,024 IPv6: 512
MAC Table	8,192
ACL Entries	IPv4: 256, IPv6: 128, MAC: 256

Environmental & Electrical

Operating Temp	0°C to 45°C (up to 1.5 km); Derate -1°C per 1000 ft up to 3 km
Humidity (Op/Storage)	15% to 95% @ 40°C (Op), 15% to 90% @ 65°C (Storage)
Altitude (Op/Non-Op)	Max Operating: 10,000 ft; Max Non-Operating: 15,000 ft
Frequency	50 / 60 Hz
Voltage	100–127 VAC / 200–240 VAC
Current	4.9 A / 2.4 A	0.8 A / 0.5 A	4.6 A / 2.3 A
Power (230 VAC)	Idle: 30.6W Max: 45W / 480W (PoE)	Idle: 20.6W Max: 44.2W	Idle: 22.9W Max: 32.7W / 455W (PoE)

Certifications

Safety	IEC / EN / UL / CSA 62368-1 (2014/2018)
Emissions	VCCI, CNS, FCC, EN 55032, ICES, AS/NZS CISPR 32 (Class A)
Laser	IEC / EN 60825-1:2014 Class 1 (Transceivers)
Immunity	CISPR 35, IEC 61000-4-x Series, EN 55035

Mounts in standard 19" rack, horizontal surface, or wall (kit included).
