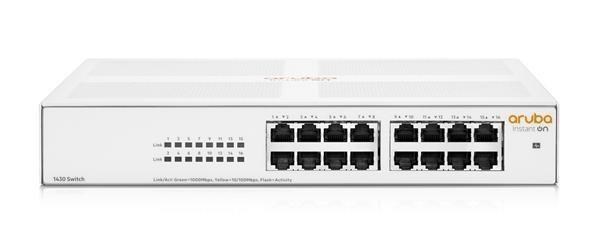

Aruba Instant On 1430 16G Switch

Výrobce: HP

Buďte první, kdo napíše recenzi tohoto produktu

Kód: LAP8328

Typové označení výrobce : R8R47A#ABB

GTIN (EAN): 190017601984

Záruka: doživotní

Sklad	Dostupnost
E-shop	2 ks
Externí	0 ks
Prodejna P-4	0 ks

2 915,00 Kč s DPH

2 409,00 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

Aruba Instant On 1430 16G Switch

Aruba Instant On 1430 16G Switch (R8R47A)
I/O ports and slots	16 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions	258(d) x 275(w) x 44(h) mm
Weight	3.80 lb (01.72 kg)
Processor and Memory	128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency	< 2.7 Î1Sec
1000 Mb latency	< 1.80 Î1Sec
Throughput (Mpps)	23.80 Mpps
Capacity	32 Gbps
MAC address table size	8192 entries
Reliability MTBF (years)	269.8
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature	-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity	15% to 90% @ 149°F (65°C) non-condensing
Altitude	up to 10,000 ft (3 km)
Acoustics	Fanless
Electrical Characteristics
Frequency	50Hz/60Hz
AC voltage	100-127VAC / 200- 240VAC
Current	0.2A/0.2A
Maximum power rating	7.9W
Idle power	2.3W
PoE power	-
Power Supply	Internal Power Supply
Safety	EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions	EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity	BS/EN 55035, CISPR 35, KS C 9835
Generic	EN 55035, CISPR 35
EN	EN/IEC 61000-4-2
ESD	EN/IEC 61000-4-3
Radiated	EN/IEC 61000-4-4
EFT/Burst	EN/IEC 61000-4-5
Surge	EN/IEC 61000-4-6
Conducted	EN/IEC 61000-4-8
Power frequency magnetic field	EN/IEC 61000-4-11
Voltage dips and interruptions	EN/IEC 61000-3-2
Harmonics	EN /IEC 61000-3-3
Device Management	Unmanaged
Mounting
Mounting positions and supported racking	Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

Specifikace produktů

Funkce	QoS (Quality of service), L2
Management	Ne
Maximální počet portů	16
Počet PoE Out portů	0
Počet portů Combo	0
Počet portů LAN	16
Počet portů QSFP+	0
Počet portů QSFP28	0
Počet portů SFP28	0
Počet SFP portů	0
Počet SFP+ portů	0
Podporované standardy PoE	Žádný
PoE budget (W)	0
Provedení	Desktop, Rack mounted 19"
Přenosová rychlost LAN (Mb/s)	24
Technologie	Gigabit Ethernet 1000Mbps
Ventilátor	Ne
