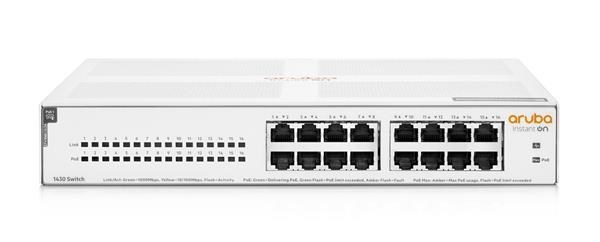

HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430

Výrobce: HP

Kód: LAP9840

Typové označení výrobce : R8R48A#ABB

GTIN (EAN): 190017602202

Záruka: doživotní

6 416,00 Kč s DPH

5 303,00 Kč bez DPH

Množ.:

i h

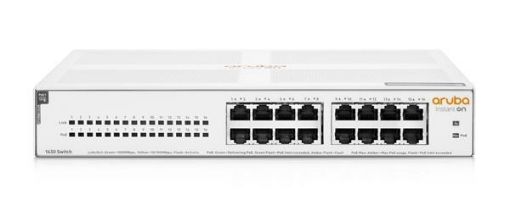

HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430 (R8R48A)
I/O ports and slots	16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Dimensions	260(d) x 275(w) x 44(h) mm
Weight	4.60 lb (2.09 kg)
Processor and Memory	128Kb EEPROM; Packet buffer size: 2.0 Mb
100 Mb latency	< 2.7 µSec
1000 Mb latency	< 1.80 µSec
Throughput (Mpps)	23.80 Mpps
Capacity	32 Gbps
MAC address table size	8192 entries
Reliability MTBF (years)	126.1
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature	-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity	15% to 90% @ 149°F (65°C) non-condensing
Altitude	up to 10,000 ft (3 km)
Acoustics	Fanless
Frequency	50Hz/60Hz
AC voltage	100-127VAC / 200- 240VAC
Current	1.7A /0.8A
Maximum power rating	147W
Idle power	5W
PoE power	124W Class 4 PoE
Power Supply	Internal Power Supply

Safety		EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions		EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity		BS/EN 55035, CISPR 35, KS C 9835
Generic		EN 55035, CISPR 35
EN		EN/IEC 61000-4-2
ESD		EN/IEC 61000-4-3
Radiated		EN/IEC 61000-4-4
EFT/Burst		EN/IEC 61000-4-5
Surge		EN/IEC 61000-4-6
Conducted		EN/IEC 61000-4-8
Power frequency magnetic field		EN/IEC 61000-4-11
Voltage dips and interruptions		EN/IEC 61000-3-2
Harmonics		EN /IEC 61000-3-3
Device Management		Unmanaged
Mounting
Mounting positions and supported racking		Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

Specifikace produktů

Funkce	QoS (Quality of service), PoE (Power over ethernet), L2
Management	Ne
Maximální počet portů	16
Počet PoE Out portů	16
Počet portů LAN	16
Počet portů SFP28	0
Počet SFP portů	0
Podporované standardy PoE	802.3af
PoE budget (W)	125
Provedení	Desktop, Rack mounted 19"
Přenosová rychlost LAN (Mb/s)	24
Technologie	Gigabit Ethernet 1000Mbps
Ventilátor	Ne
