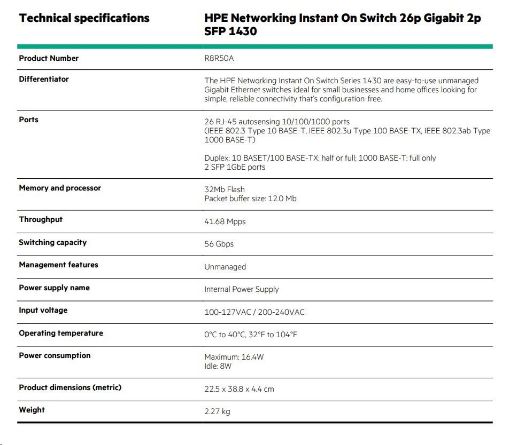

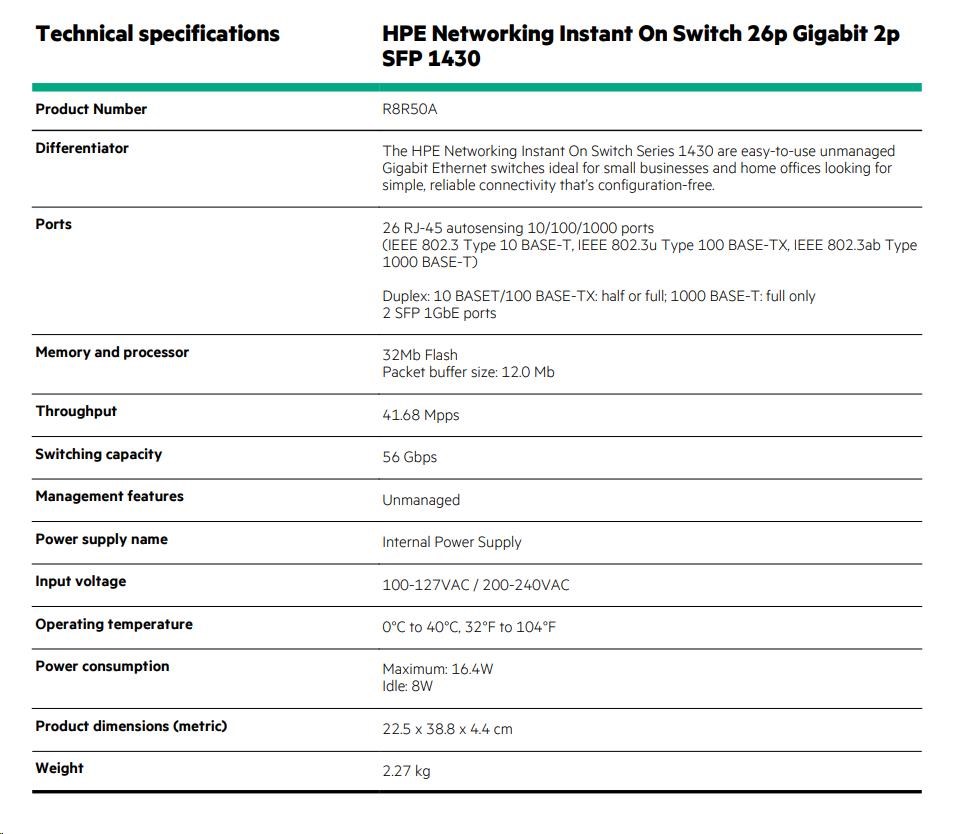

Aruba Instant On 1430 26G 2SFP Switch

26 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports

225(d) x 388(w) x 44(h) mm

5.00 lb (2.27 kg)

32Mb Flash; Packet buffer size: 12.0 Mb

< 5.21 µSec

> 2.90 µSec

41.68 Mpps

56 Gbps

16384 entries

171.9

32°F to 104°F (0°C to 40°C)

15% to 95% @ 104°F (40°C) non-condensing

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

15% to 90% @ 149°F (65°C) non-condensing

up to 10,000 ft (3 km)

Fanless

50Hz/60Hz

100-127VAC / 200- 240VAC

0.4A / 0.3A

16.4W

8W

-

Internal Power Supply

• EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
• EN/IEC 62368-1, 2nd. & 3rd. Ed.
• UL 62368-1, 3rd. Ed.
• CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
• EN/IEC 60825- 1:2014 Class 1

• EN 55032:2015/ CISPR 32, Class A
• FCC CFR 47 Part 15: 2018, Class A
• ICES-003, Class A
• VCCI-32, Class A
• CNS 13438, Class A
• KS C 9832, Class A
• AS/NZS CISPR 32, Class A

BS/EN 55035, CISPR 35, KS C 9835

EN 55035, CISPR 35

EN/IEC 61000-4-2

EN/IEC 61000-4-3

EN/IEC 61000-4-4

EN/IEC 61000-4-5

EN/IEC 61000-4-6

EN/IEC 61000-4-8

EN/IEC 61000-4-11

EN/IEC 61000-3-2

EN /IEC 61000-3-3

Unmanaged

• Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
• Supports table-top mounting
• Supports rack-mounting using the brackets provided
• Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
• Supports under-table mounting using the brackets provided
• Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

• Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)
• Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)
