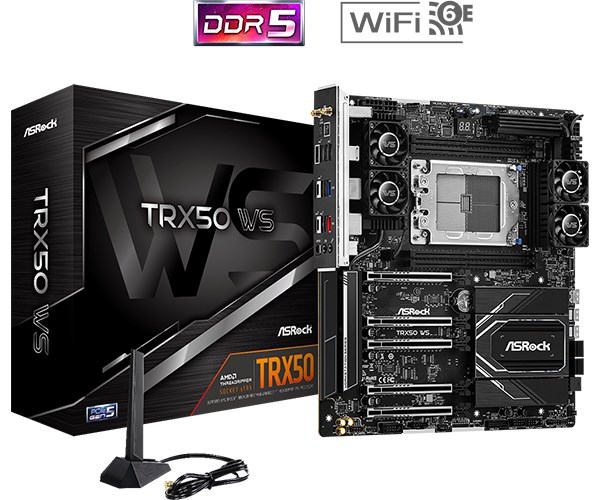

ASRock MB Sc sTRX5 TRX50 WS, AMD TRX50, 4xDDR5, E-ATX

Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Quad Channel DDR5
Rock-Solid Durability
- Ultra Low-Loss PCB
- 18+3+3 Power Phase, 110A SPS for VCore
- Pre-Installed I/O Shield
- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
- 10G LAN, 2.5G LAN, 802.11ax Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer

- Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors
- Supports AMD Socket sTR5
- Supports ASRock Hyper BCLK Engine

- AMD TRX50

- Quad Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
- Max. capacity of system memory: 1TB

- 256Mb AMI UEFI Legal BIOS with GUI support

- n/a

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio

1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113)
- Support Wake-On-LAN
- Support PXE
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO

CPU:
- 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)*
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode*
Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15µ Gold Contact in VGA PCIe Slots

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 mode*
- 1 x MCIO PCIe Gen5x4 Connector
- 2 x SlimSAS SFF-8654 Connectors (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode*
- 4 x SATA3 6.0 Gb/s Connectors

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

CPU:
- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 4 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
- 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 4 x USB 2.0 (Front)

- 2 x Thermistor Cable Headers
- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Addressable LED Headers*
- 1 x CPU Fan Connector (4-pin)**
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 3 pin ATX Power Connector*****
- 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
- 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
- 1 x 6 pin Graphics 12V Power Connector (Hi-Density Power Connector) (for PCIe card)*******
- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED

- 2 x Antenna Ports
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Type-A Ports
- 2 x RJ-45 LAN Ports
- 1 x Clear CMOS Button
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

- 1 x User Manual
- 4 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 2 x Thermistor Cables
- 1 x Multi PSU Adaptor Cable
- 2 x Screws for M.2 Sockets
- 2 x Standoffs for M.2 Sockets

- Microsoft Windows 11 64-bit

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

- EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm
- 12 Layer PCB
- 2oz Copper PCB
