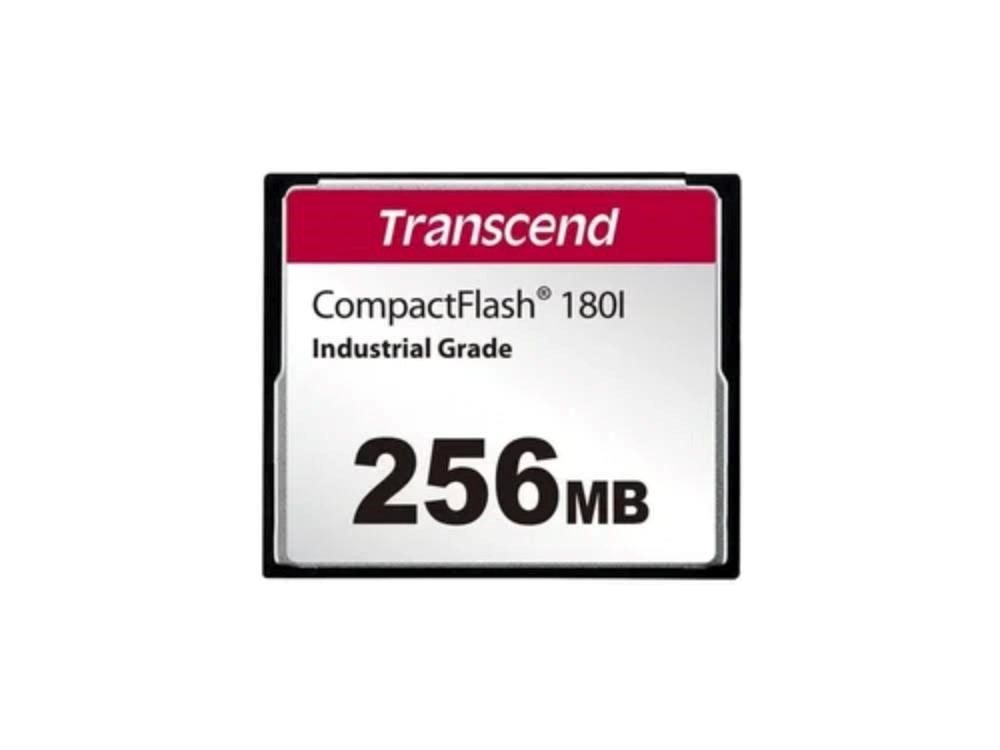

TRANSCEND CompactFlash Card CF180I, 256MB, SLC mode WD-15, Wide Temp.

Buďte první, kdo napíše recenzi tohoto produktu

Kód: DFQ4774

Typové označení výrobce : TS256MCF180I

GTIN (EAN): 760557858829

Záruka: 36 Měsíců

Sklad	Dostupnost
E-shop	9 ks
Prodejna P-4	0 ks
Externí	0 ks

575,00 Kč s DPH

475,00 Kč bez DPH

Množ.:

i h

Shrnutí
Specifikace
Recenze
Kontaktujte nás

CF180 & CF180I

Transcend's SLC Mode technology is a cost-effective solution that offers performance close to that of SLC NAND flash at a more affordable price. Boasting a high-speed data transfer rate, Transcend's SLC Mode CF180 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications having high performance and capacity demands. Thanks to their use of Static Data Refresh technology, CF180 CF cards feature error correction capability, maintain data integrity, and have an extended lifespan.

Based on Ultra DMA Mode 5
True IDE Mode supported: UDMA0-5 (default), MDMA0-4, PIO0-6
True IDE Mode: Fixed Disk (Standard)
Operation modes supported: PC Card Memory mode, PC Card IO mode, and True IDE mode
Built-in ECC (Error Correction Code) functionality
Static Data Refresh
Erase Count Monitoring
Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
Wear-Leveling
Security Command

TECHNICAL SPECIFICATIONS

Dimensions	42.8 mm x 36.4 mm x 3.3 mm (1.69" x 1.43" x 0.13")
Pin Count	50 pin
Form Factor	Compact flash card
Storage
Flash Type	MLC NAND flash (SLC mode)
Capacity	128 MB
Operating Environment
Operating Voltage	3.3V±5% 5V±10%
Operating Temperature	Extended Temp.-25°C (-13°F) ~ 85°C (185°F) Wide Temp.-40°C (-40°F) ~ 85°C (185°F)
Storage Temperature	-40°C (-40°F) ~ 85°C (185°F)
Humidity	0% ~ 95%
Shock	1500 G, 0.5 ms, 3 axis
Vibration (Operating)	20 G (peak-to-peak), 20 Hz ~ 2,000 Hz (frequency)
Power
Power Consumption (Max.)	0.6 watt(s)
Performance
Read Speed (Max.)	up to 85 MB/s
Write Speed (Max.)	up to 70 MB/s
Mean Time Between Failures (MTBF)	3,000,000 hour(s)
Terabytes Written (TBW)	up to 210 TBW
Note	Speed may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate	CE/FCC/UKCA
Warranty	Three-year Limited Warranty

Specifikace produktů

Typ karty	CompactFlash I
Kapacita uložiště	0.256
