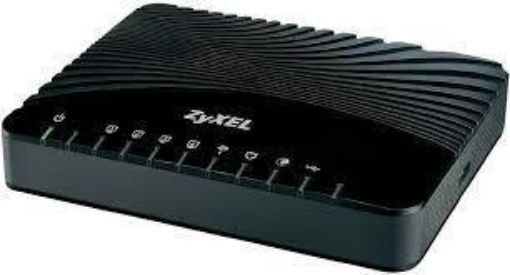

ZyXEL VDSL2 300M 3G router VMG1312 Annex-B

SYSTEM SPECIFICATIONS VDSL Compliance • ITU-T G.993.1 VDSL1 compliant • ITU-T G.993.2 VDSL2, band plan 997, 998 • Support VDSL profile: 8a/b/c/d, 12a/b, and 17a • Rate adaption • Dual-latency • Seamless Rate Adaption (SRA) • INP: up to 16 symbols • PTM mode • G.INP • PhyR configurable ADSL Compliance • ITU-T G.992.1 (G.dmt) compliant • ITU-T G.992.2 (G.lite) compliant • ITU-T G.992.3 (ADSL2) compliant • ITU-T G.992.5 (ADSL2+) compliant • Reach-Extended ADSL (RE ADSL) • Seamless Rate Adaption (SRA) • Support VC-based and LLC-based multiplexing WLAN • IEEE 802.11 b/g/n compliance • Frequency: 2.4 GHz • Data rate: 300 Mbps • WPA/WPA-PSK, WPA2/WPA2-PSK • WEP data encryption 64/128 bit • Wireless Protected Setup (WPS) • Multi SSID (up to 4) and hidden SSID support USB • File sharing • 3G backup support Bridge/Router • PPPoE (RFC2516) • PPPoA (RFC2364) • DHCP client/server/relay • DNS proxy • Dynamic DNS • RIP I/RIP II supported • UPnP • Static/policy route • QoS classification route Firewall/Security • PAP and CHAP support • MS-CHAPv1 and v2 support • Stateful Packet Inspection (SPI) • DoS Attack Prevention • Parental Control QoS • Queuing and scheduling • Queue management Management • Web GUI • Command Line Interpreter (CLI) via SSH or Telnet • Firmware upgrade via Web/FTP/TFTP • DSL forum TR-064, 069, 098,111 • Configurable access control for remote management HARDWARE SPECIFICATIONS • WAN: - One RJ-11 port (VMG1312-B10A) for VDSL/ADSL2+ over POTS - One RJ-45 port (VMG1312-B30A) for VDSL/ADSL2+ over ISDN • LAN: Four Fast Ethernet ports • WLAN: Two internal antennas • USB: One for USB2.0 host interface • WLAN/WPS button: One real button for WLAN on/off and WPS configuration • Reset/Restore button: One real button for restore factory default settings • Status LED indicator: Power, Ethernet, DSL, Internet, WLAN/WPS, USB PHYSICAL SPECIFICATIONS • Item dimensions (W x D x H):186 x 121 x 39 mm • Item weight: 245 g • Packing dimensions (W x D x H):300 x 195 x 50 mm • Packing weight: 540 g ENVIRONMENTAL SPECIFICATIONS Operating Environment • Temperature: 0°C to 40°C • Humidity: 20% to 95% RH (Non-condensing) Storage Environment • Temperature: -30°C to 60°C • Humidity: 20% to 95% RH (Non-condensing) CERTIFICATION • EMC: CE, FCC • Safety: CE
