HARDWARE FEATURES |
| Interface | 1× 2.5 Gbps LAN Port |
| Button | • WPS Button
• Reset Button |
| Input Power | 100-240V~50/60Hz 0.5A |
| Max. Power Consumption | 23.5W |
| Dimensions ( W x D x H ) | 4.2 ×1.5 × 6.3 in. (107.2 × 39 × 161 mm) |
| Antenna | 4 External Antennas |
WIRELESS FEATURES |
| Wireless Standards | Wi-Fi 7
IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz |
| Frequency | • 6 GHz
• 5 GHz
• 2.4 GHz |
| Signal Rate | • 5764 Mbps at 6 GHz
• 4323 Mbps at 5 GHz
• 688 Mbps at 2.4 GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 6GHz:
11be HE20 MCS0:-95dBm, 11be HE20 MCS13:-60dBm
11be HE40 MCS0:-92dBm, 11be HE40 MCS13:-57dBm
11be HE80 MCS0:-88dBm, 11be HE80 MCS13:-53dBm
11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-50dBm
11be HE320 MCS0:-81dBm, 11be HE160 MCS13:-46dBm
5GHz:
11be HE20 MCS0:-93dBm, 11be HE20 MCS13:-58dBm
11be HE40 MCS0:-89dBm, 11be HE40 MCS13:-54dBm
11be HE80 MCS0:-87dBm, 11be HE80 MCS13:-51dBm
11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-49dBm
11be HE240 MCS0:-83dBm, 11be HE160 MCS13:-47dBm
2.4GHz:
11be HE20 MCS0:-97dBm, 11be HE20 MCS11:-64dBm
11be HE40 MCS0:-95dBm, 11be HE40 MCS11:-62dBm |
| Wireless Security | • WPA/WPA2-PSK encryptions
• WPA3 |
| Advanced Features | • Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs |
| Transmission Power | FCC:
• 2.4GHz < 30dBm
• 5GHz < 30dBm
• 6GHz < 30dBm |
| Mesh Technology | EasyMesh-Compatible |
| Wireless Function | • LED Control
• Access Control
• Power Schedule
• Wi-Fi Coverage |
OTHERS |
| Certification | FCC, RoHS |

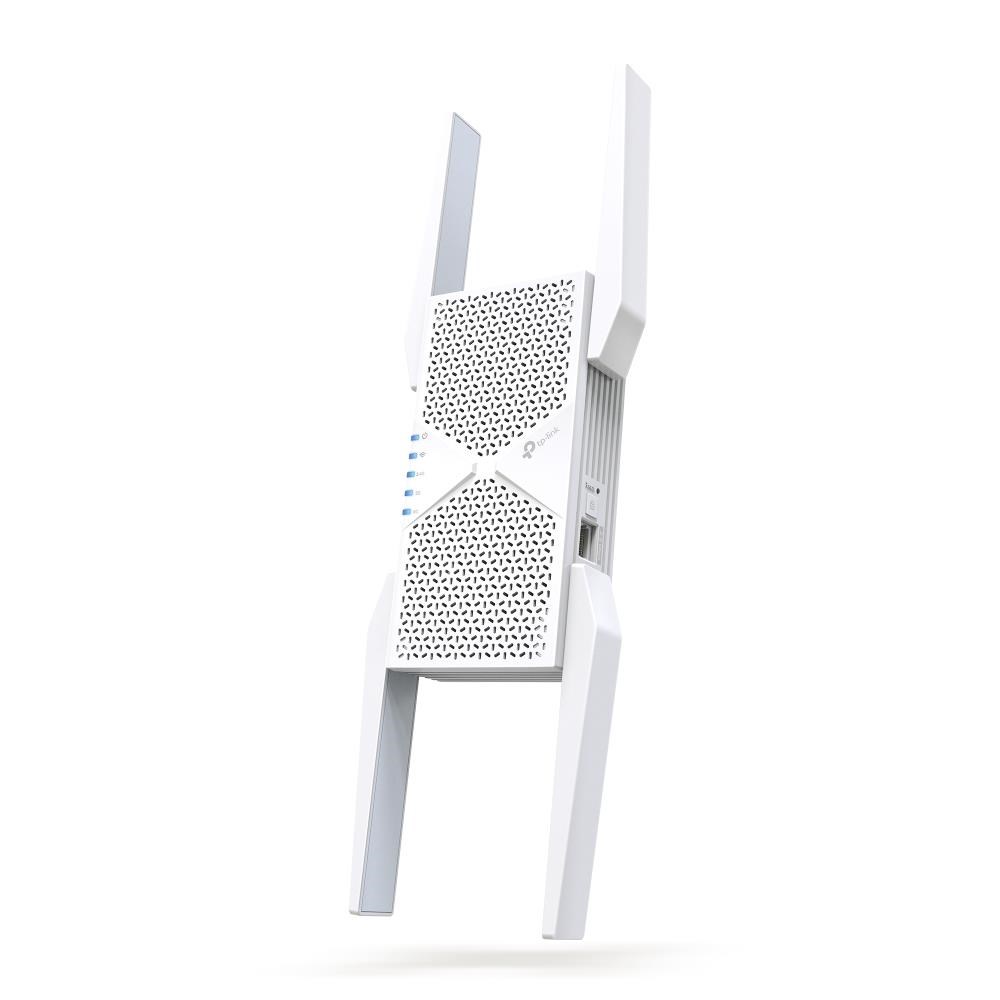

| Package Content | • Wi-Fi 7 Range Extender RE655BE
• Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or
Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari
4.0, or other Java-enabled browser |
| Environment | • Operating Temperature: 0?~40? (32? ~104?)
• Storage Temperature: -40?~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
